ST62T25CM3 - STMicroelectronics

Description: 8-bit MCUs with A/D converter, two timers, oscillator safeguard & safe reset

Download ST62T25CM3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

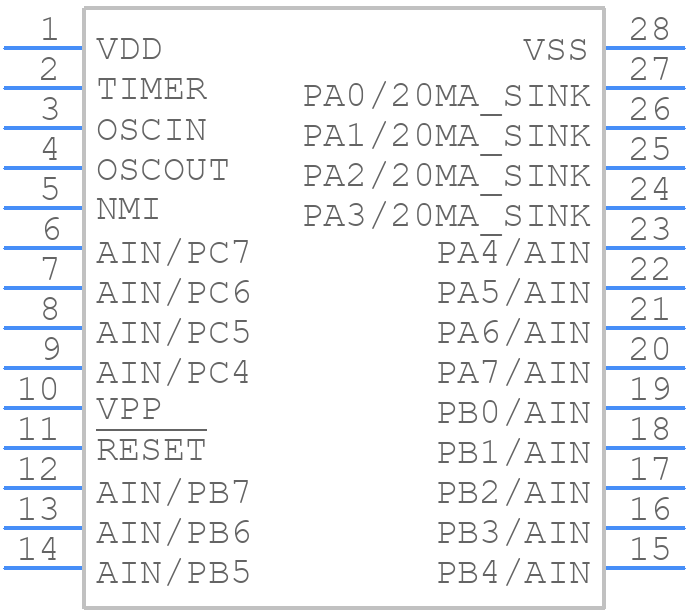

ST62T25CM3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST62T25CM3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO28..
click to zoom
3D Models
ST62T25CM3 - STMicroelectronics - 3D model - Small Outline Packages - SO28..
click to zoom

ST62T25CM3 Details

  • Manufacturer Part Number:

    ST62T25CM3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    0.300 INCH, PLASTIC, SOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Number of I/O Lines:

    20

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • ROM (words):

    4096

  • ROM Programmability:

    OTPROM

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HCMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST62T25CM3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST62T25CM3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure reliable communication in a noisy environment, it's recommended to use proper shielding, grounding, and decoupling techniques. Additionally, implementing error detection and correction mechanisms, such as checksums or CRCs, can help detect and correct errors caused by noise.
  • The maximum clock frequency that the ST62T25CM3 can support is 25 MHz, as specified in the datasheet. However, it's essential to note that the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • To configure the ST62T25CM3 for low-power operation, you can use the device's power-saving modes, such as the STOP or SLEEP modes. Additionally, you can reduce the clock frequency, disable unused peripherals, and optimize the firmware to minimize power consumption.
  • The recommended layout and routing strategy for the ST62T25CM3 involves keeping the signal traces short and direct, avoiding vias and layer changes, and using a solid ground plane to reduce noise and electromagnetic interference (EMI). It's also essential to follow the datasheet's recommendations for pin placement and routing.
