ST62T25CN6 - STMicroelectronics

Description: 8-bit MCUs with A/D converter, two timers, oscillator safeguard & safe reset 2K or 4K bytes Program memory (OTP, EPROM, FASTROM or ROM) with read-out protection 64 bytes RAM

Download ST62T25CN6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

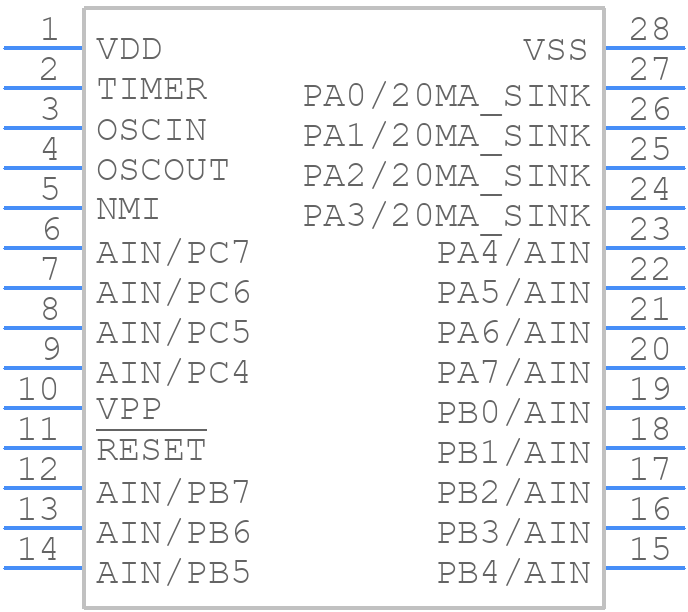

Symbol
ST62T25CN6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST62T25CN6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-28......
click to zoom
3D Models
ST62T25CN6 - STMicroelectronics - 3D model - Small Outline Packages - SSOP-28......
click to zoom

ST62T25CN6 Details

  • Manufacturer Part Number:

    ST62T25CN6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    SSOP

  • Package Description:

    PLASTIC, SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    2

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 3V MINIMUM SUPPLY

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST6200

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    20

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    64

  • ROM (words):

    4096

  • ROM Programmability:

    OTPROM

  • Seated Height-Max:

    2 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HCMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST62T25CN6 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ST62T25CN6 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure reliable communication in a noisy environment, it's recommended to use proper shielding, grounding, and decoupling techniques. Additionally, implementing error detection and correction mechanisms, such as checksums or CRCs, can help detect and correct errors caused by noise.
  • The maximum clock frequency that the ST62T25CN6 can support is 25 MHz, as specified in the datasheet. However, it's essential to ensure that the clock signal is clean and stable to avoid any issues with the device's operation.
  • The ST62T25CN6 can be programmed using an external programmer, such as the STMicroelectronics ST-Link or a third-party programmer. The programmer must be connected to the device's programming pins, and the programming software must be configured to communicate with the device.
  • The power consumption of the ST62T25CN6 varies depending on the operating mode. In active mode, the device consumes around 10 mA at 25 MHz. In standby mode, the device consumes around 10 μA, and in sleep mode, it consumes around 1 μA. The exact power consumption can be found in the datasheet or by consulting with STMicroelectronics support.
