ST72F260G1M6 - STMicroelectronics

Description: ST7 ST7 Microcontroller IC 8-Bit 16MHz 4KB (4K x 8) 16MHz 256 x 8 2.7V ~ 5.5V -40°C ~ 85°C (TA) FLASH 28-SO

Download ST72F260G1M6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

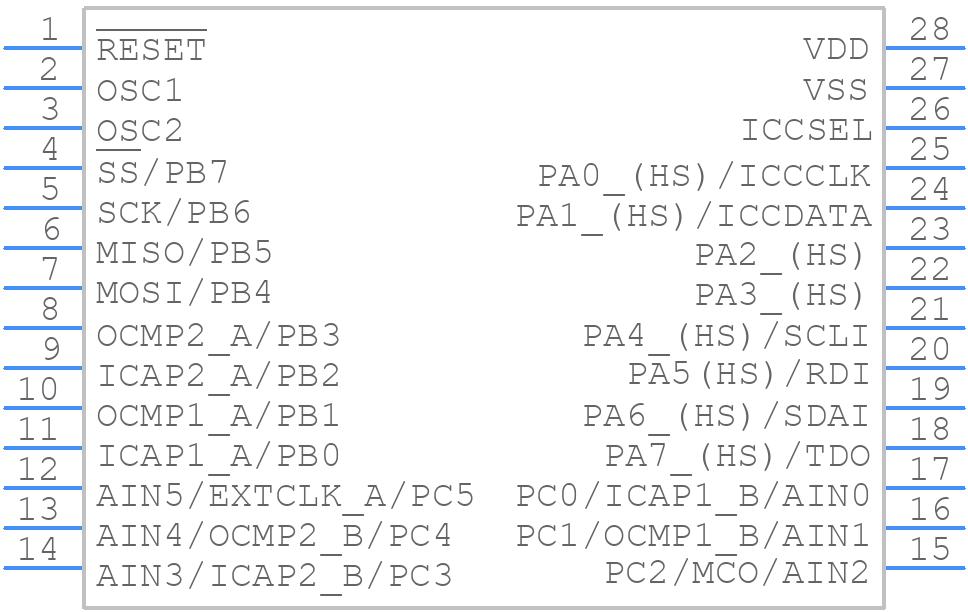

ST72F260G1M6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST72F260G1M6 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO28_2026-1
click to zoom
3D Models
ST72F260G1M6 - STMicroelectronics - 3D model - Small Outline Packages - SO28_2026-1
click to zoom

ST72F260G1M6 Details

  • Manufacturer Part Number:

    ST72F260G1M6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • CPU Family:

    ST72

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    22

  • Number of Terminals:

    28

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    11 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

ST72F260G1M6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ST72F260G1M6 is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within the -20°C to +70°C range for optimal performance and reliability.
  • The ST72F260G1M6 has multiple clock sources, including an internal RC oscillator, an external crystal oscillator, and an external clock source. To configure the clock source, you need to set the appropriate bits in the Clock Control Register (CKCU) and the Power Management Control Register (PMC). Refer to the datasheet and the application notes for more information.
  • The maximum current consumption of the ST72F260G1M6 depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical current consumption is around 10mA at 16MHz and 3.3V, but it can go up to 20mA in certain configurations. It's recommended to consult the datasheet and perform power consumption analysis for your specific application.
  • The ST72F260G1M6 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WDTC). You need to set the WDT clock source, timeout period, and enable the WDT in the WDTC register. Refer to the datasheet and the application notes for more information on implementing a watchdog timer.
  • Yes, the ST72F260G1M6 has an external memory interface that allows you to connect external memory devices such as SRAM, Flash, or EEPROM. You need to configure the External Memory Interface (EMI) registers to set the memory type, address, and data width. Consult the datasheet and the application notes for more information on using external memory with the ST72F260G1M6.
