ST8024LACDR - STMicroelectronics

Description: Smart card interface

Download ST8024LACDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

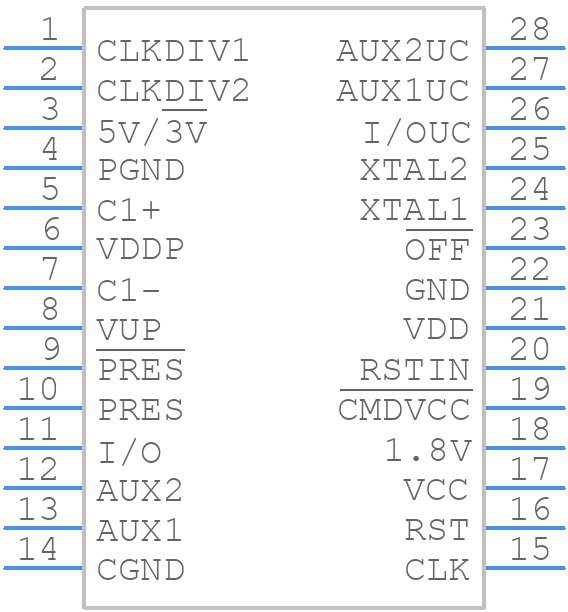

ST8024LACDR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST8024LACDR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-28_1
click to zoom
3D Models
ST8024LACDR - STMicroelectronics - 3D model - Small Outline Packages - SO-28_1
click to zoom

ST8024LACDR Details

  • Manufacturer Part Number:

    ST8024LACDR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    250

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ST8024LACDR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ST8024LACDR has a programmable output voltage range. You can configure it using the I2C interface to set the desired output voltage range. Refer to the datasheet section 7.3.1 'Output Voltage Setting' for more information.
  • The ST8024LACDR can handle input voltages up to 18V, but it's recommended to operate within the specified range of 4.5V to 15V for optimal performance and reliability.
  • The ST8024LACDR has built-in OCP and SCP features. You can configure the OCP threshold using the I2C interface, and the SCP is enabled by default. Refer to the datasheet section 7.3.2 'Overcurrent Protection' and section 7.3.3 'Short-Circuit Protection' for more information.
  • The thermal derating curve for the ST8024LACDR is provided in the datasheet section 6.2 'Thermal Characteristics'. It shows the maximum output current vs. ambient temperature, which helps you design a reliable and efficient system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ST8024LACDR Overview

Use the download button to access the ST8024LACDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST802, or try a keyword search, such as Other Interface ICs
