- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for STA013
- Part Number STA013
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO28-2
- Released Date May 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STA013 Details
-
Manufacturer Part Number:
STA013
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SO-28
-
Pin Count:
28
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
STA013 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first power up the analog supply (VCCA) and then the digital supply (VCCD). This ensures that the analog circuitry is stable before the digital circuitry is powered up.
-
The STA013 is a highly configurable device, and the configuration depends on the specific audio application. Refer to the application notes and evaluation boards provided by STMicroelectronics for guidance on configuring the device for your specific use case.
-
The maximum clock frequency that can be used with the STA013 is 50 MHz. However, the recommended clock frequency is 12.288 MHz, which is the standard clock frequency for audio applications.
-
The STA013 has a dedicated mute pin (MUTE) that can be used to mute the audio output. When the MUTE pin is pulled low, the audio output is muted. You can also use the I2C interface to control the mute function.
-
The power consumption of the STA013 varies depending on the operating mode. In normal operation, the power consumption is around 20 mA. In power-down mode, the power consumption is around 10 μA. Refer to the datasheet for more detailed information on power consumption in different operating modes.
Trust Checks
Community Provided
System Verified
Community Approved
STA013 Overview

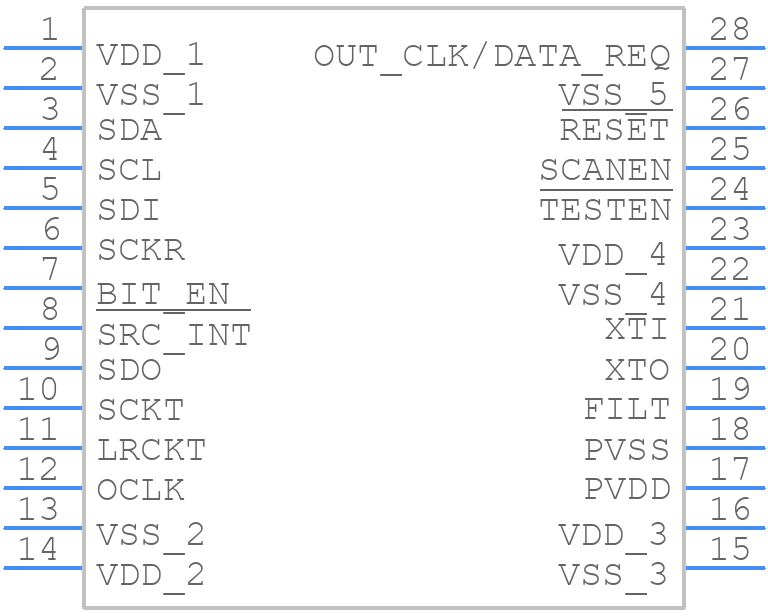

Use the download button to access the STA013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA01,
or try a keyword search, such as Other Consumer ICs
