- Part Number STA120DJ
- Manufacturer STMicroelectronics
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO28-2021
- Released Date Nov 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
STA120DJ Details
-
Manufacturer Part Number:
STA120DJ
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Consumer IC Type:
CONSUMER CIRCUIT
-
JESD-30 Code:
R-PDSO-G28
-
JESD-609 Code:
e4
-
Moisture Sensitivity Level:
3
STA120DJ Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
-
The STA120DJ is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software development kit (SDK) that includes a configuration tool and example code to help engineers configure the device for their specific use case.
-
The STA120DJ is capable of delivering up to 120W of power per channel into a 4Ω load. However, the maximum power handling capability depends on the specific application, thermal management, and PCB design. Engineers should consult the datasheet and application notes for more information.
-
To ensure EMC, engineers should follow the guidelines provided in the application note AN4841, which includes recommendations for PCB layout, component selection, and shielding. Additionally, STMicroelectronics provides an EMC-compliant evaluation board that can be used as a reference design.
-
The STA120DJ has a thermal pad that must be connected to a heat sink or a thermal management system to ensure proper heat dissipation. Engineers should follow the thermal management guidelines provided in the datasheet and application notes to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
STA120DJ Overview

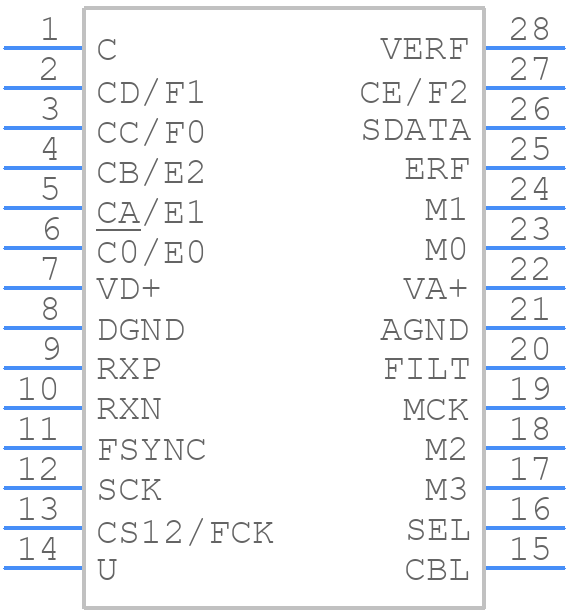

Use the download button to access the STA120DJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA12,
or try a keyword search, such as Other Consumer ICs
