STA323W13TR - STMicroelectronics

Description: 2.1-channel high-efficiency digital audio system

Download STA323W13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

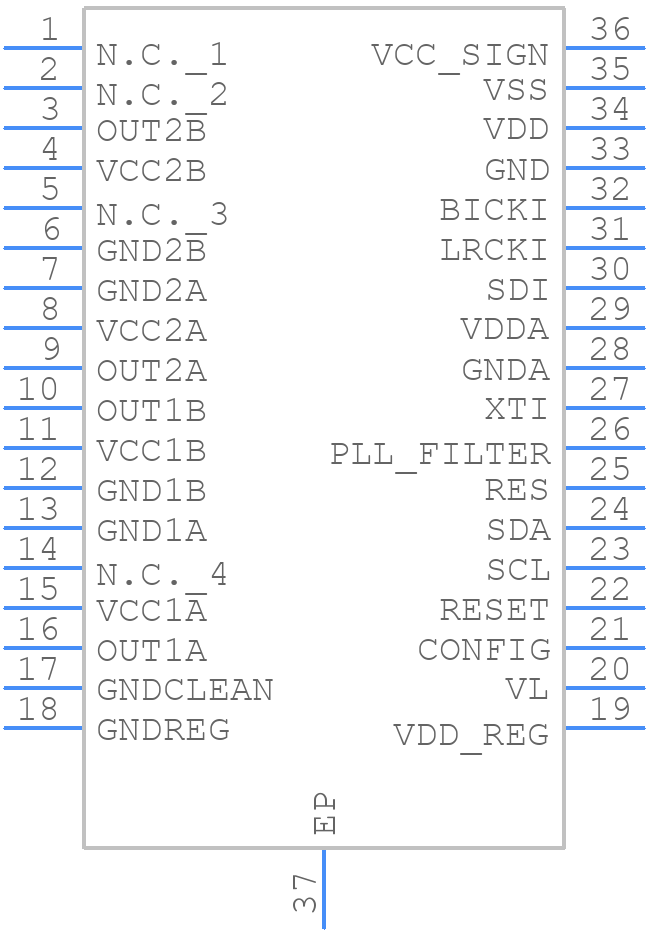

STA323W13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA323W13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-36
click to zoom
3D Models
STA323W13TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-36
click to zoom

STA323W13TR Details

  • Manufacturer Part Number:

    STA323W13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWER, SO-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

STA323W13TR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The STA323W13TR is a highly configurable device. To configure it for a specific audio application, refer to the application notes and evaluation boards provided by STMicroelectronics. These resources provide guidance on setting the correct register values, clock frequencies, and other parameters for various audio applications.
  • The STA323W13TR supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements. It is recommended to consult the datasheet and application notes for more information.
  • To troubleshoot issues with the STA323W13TR, start by consulting the datasheet and application notes. Check the power supply voltages, clock frequencies, and register settings. Use oscilloscopes and logic analyzers to debug the digital and analog signals. If the issue persists, contact STMicroelectronics support or a qualified engineer for further assistance.
  • The STA323W13TR is a highly flexible audio codec that can be used with a variety of audio codecs. However, compatibility depends on the specific codec and application requirements. Consult the datasheet and application notes to determine compatibility and configure the STA323W13TR accordingly.
