STA32813TR - STMicroelectronics

Description: 2.1-channel high-efficiency digital audio system

Download STA32813TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

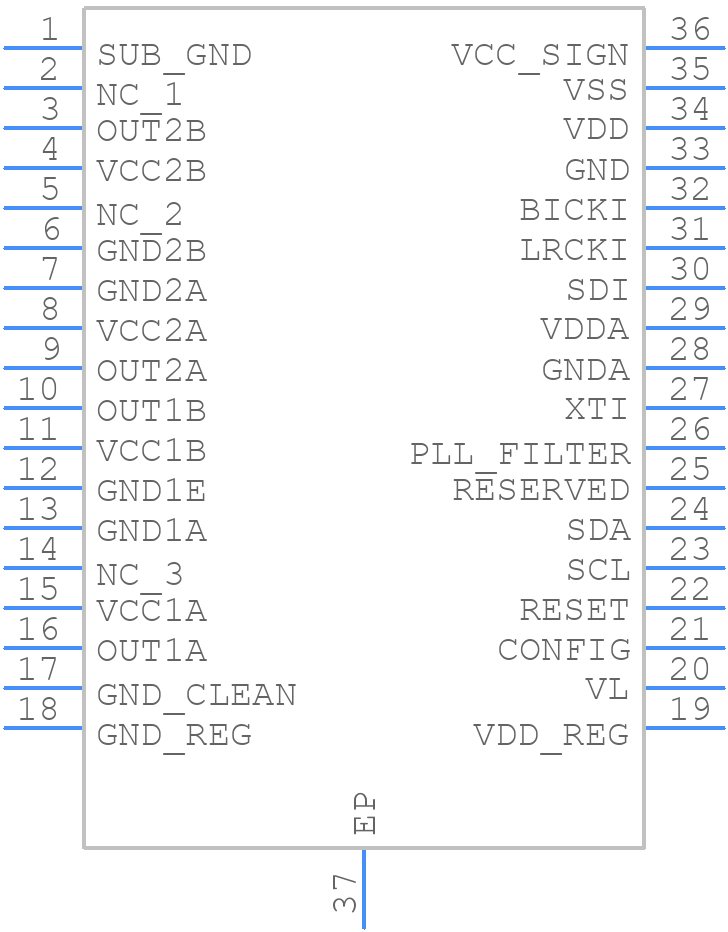

STA32813TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA32813TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - ST PowerSO36
click to zoom
3D Models
STA32813TR - STMicroelectronics - 3D model - Small Outline Packages - ST PowerSO36
click to zoom

STA32813TR Details

  • Manufacturer Part Number:

    STA32813TR

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-36

  • Pin Count:

    36

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • Length:

    15.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.43 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    11 mm

STA32813TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4841, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The STA32813TR is a highly configurable device, and the configuration depends on the specific audio application. STMicroelectronics provides a software development kit (SDK) and a graphical user interface (GUI) tool that allows engineers to configure the device for their specific use case.
  • The maximum power dissipation of the STA32813TR is dependent on the operating conditions, such as supply voltage, clock frequency, and audio signal amplitude. According to the datasheet, the maximum power dissipation is 1.3 W, but this can be reduced by optimizing the device configuration and using power-saving features.
  • To ensure EMC with the STA32813TR, engineers should follow the guidelines provided in the application note AN4841, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the device should be used in conjunction with a suitable electromagnetic interference (EMI) filter and a shielded enclosure.
  • The typical audio SNR of the STA32813TR is dependent on the specific configuration and operating conditions. According to the datasheet, the device can achieve an SNR of up to 100 dB, but this can be affected by factors such as clock jitter, power supply noise, and PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA32813TR Overview

Use the download button to access the STA32813TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA32, or try a keyword search, such as Other Consumer ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
