STA369BWS - STMicroelectronics

Description: 2.1-channel 40-watt high-efficiency digital audio system Sound Terminal®

Download STA369BWS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

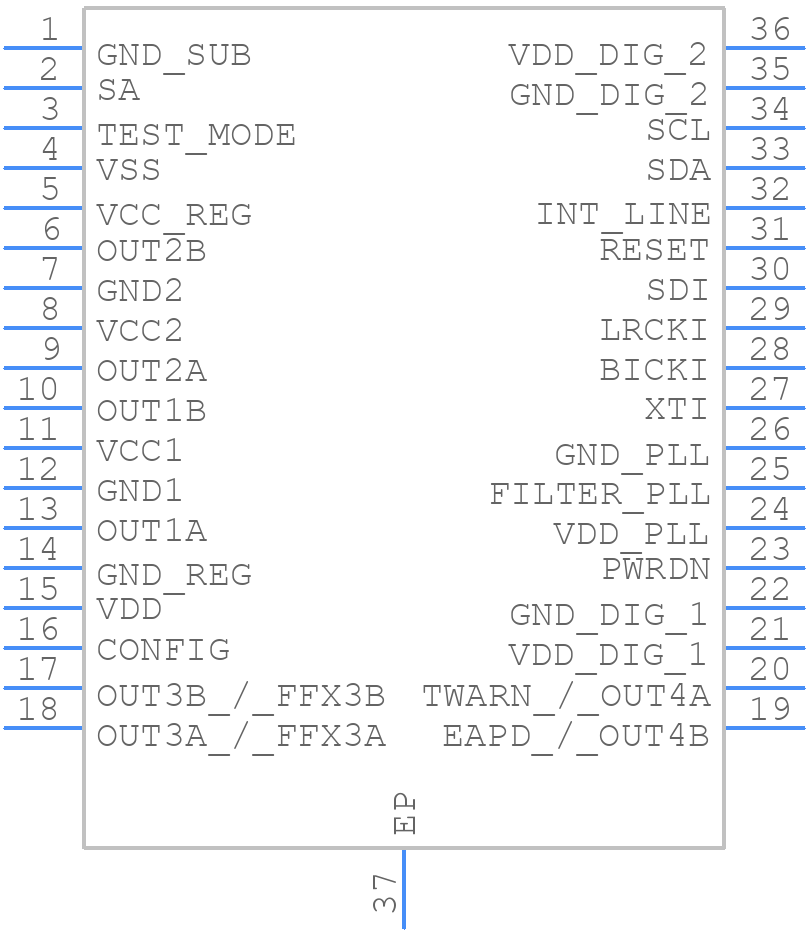

STA369BWS - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA369BWS - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD dimensions
click to zoom
3D Models
STA369BWS - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD dimensions
click to zoom

STA369BWS Details

  • Manufacturer Part Number:

    STA369BWS

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

STA369BWS Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize the STA369BWS for low power consumption, use the power-down mode, reduce the clock frequency, and minimize the number of active circuits. Additionally, use the built-in low-power modes, such as the 'Low Power Mode' and 'Deep Power Down' modes.
  • The maximum allowed clock frequency for the STA369BWS is 50 MHz. Exceeding this frequency may result in unstable operation or damage to the device.
  • To configure the STA369BWS for I2S or TDM mode, use the 'Mode Control' register to select the desired mode. For I2S mode, set the 'I2S_EN' bit to '1', and for TDM mode, set the 'TDM_EN' bit to '1'. Additionally, configure the 'Clock Control' register to select the correct clock source and frequency.
  • For optimal performance, use a 4-layer PCB with a dedicated analog ground plane and a separate digital ground plane. Keep the analog and digital circuits separate, and use short, direct traces for the clock and data signals. Avoid crossing analog and digital signals, and use decoupling capacitors to minimize noise and interference.
