STA369BWTR - STMicroelectronics

Description: 2.1-channel high-efficiency digital audio system Sound Terminal®

Download STA369BWTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

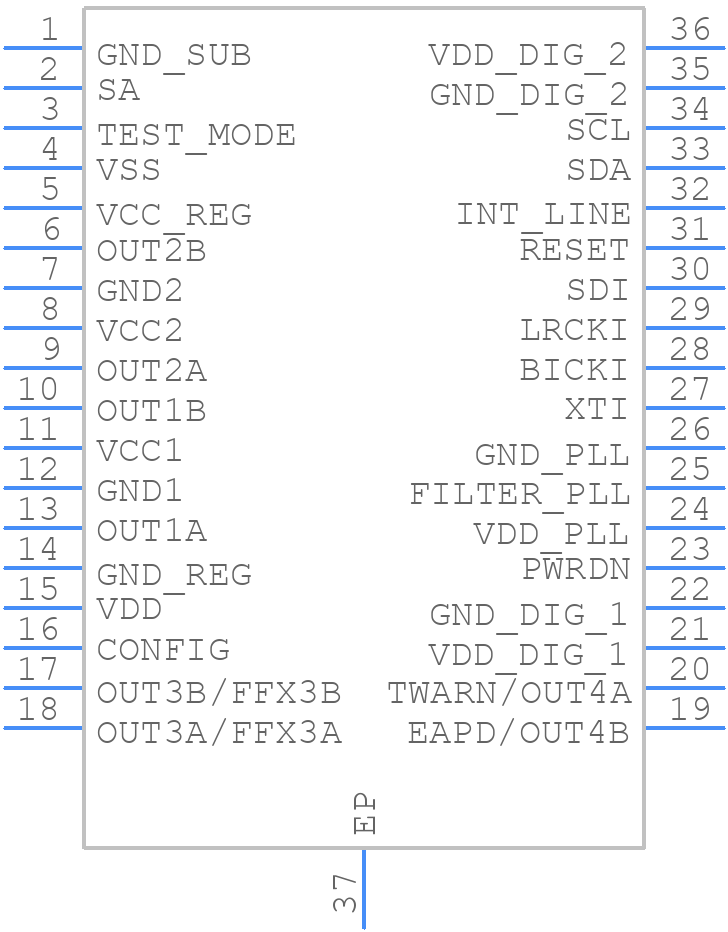

Symbol
STA369BWTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA369BWTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36 EPD
click to zoom
3D Models
STA369BWTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36 EPD
click to zoom

STA369BWTR Details

  • Manufacturer Part Number:

    STA369BWTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • Additional Feature:

    IT ALSO REQUIRES DIGITAL SUPPLY 2.7 TO 3.6 VOLT

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.47 mm

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

STA369BWTR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCCA) first, followed by the digital power supply (VCCD) and then the clock signal. This ensures proper initialization of the device.
  • To optimize the STA369BWTR for low-power applications, use the device's built-in power-saving features such as the low-power mode, reduce the clock frequency, and minimize the number of active circuits. Additionally, consider using a lower voltage power supply and optimizing the system's power management.
  • The maximum allowed clock jitter for the STA369BWTR is 500 ps. Exceeding this value may affect the device's performance and stability.
  • Yes, the STA369BWTR can be used with different clock frequencies, but the device's performance and functionality may be affected. It is recommended to consult with STMicroelectronics or a qualified engineer to ensure the device operates correctly at the desired clock frequency.
  • To troubleshoot issues with the STA369BWTR's I2S interface, check the clock and data signal integrity, ensure proper synchronization, and verify the correct configuration of the I2S mode and data format. Also, consult the device's datasheet and application notes for troubleshooting guidelines.
