- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for STA508
- Part Number STA508
- Manufacturer STMicroelectronics
- Pin Count 36
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - STA508-1-1
- Released Date Nov 28, 2018
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
STA508 Details
-
Manufacturer Part Number:
STA508
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
SOP-36
-
Pin Count:
36
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
6.12
STA508 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the STA508 is 1.8V to 3.6V.
-
To configure the STA508 for I2S audio interface, set the MODE pin to '1' and the I2S_EN pin to '1'. Also, ensure that the I2S clock frequency is set to 256*Fs or 512*Fs, where Fs is the sampling frequency.
-
The maximum clock frequency supported by the STA508 is 50 MHz.
-
To implement a reset mechanism for the STA508, connect the RESET pin to a logic high level for at least 10 ns to reset the device.
-
The power consumption of the STA508 in standby mode is typically around 10 μA.
Trust Checks
Expert Contribution
System Verified
Community Approved
STA508 Overview

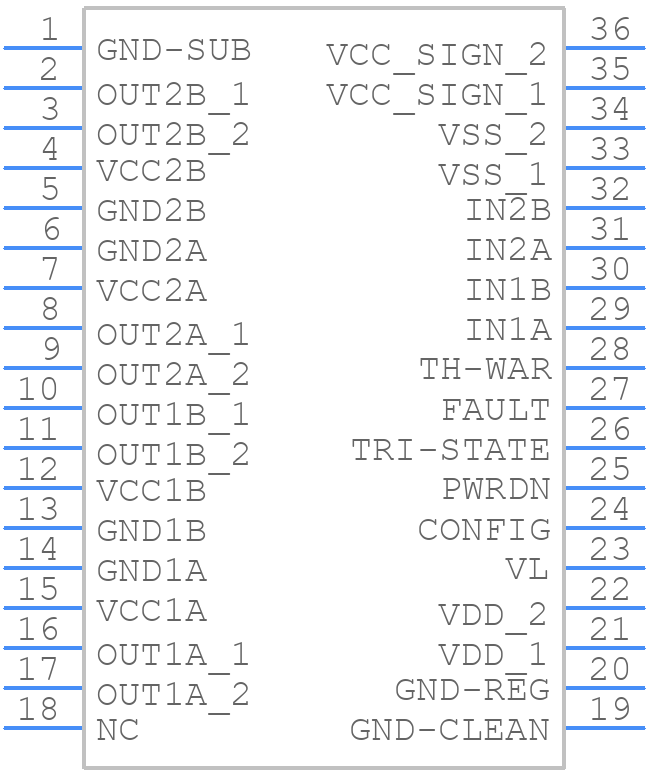

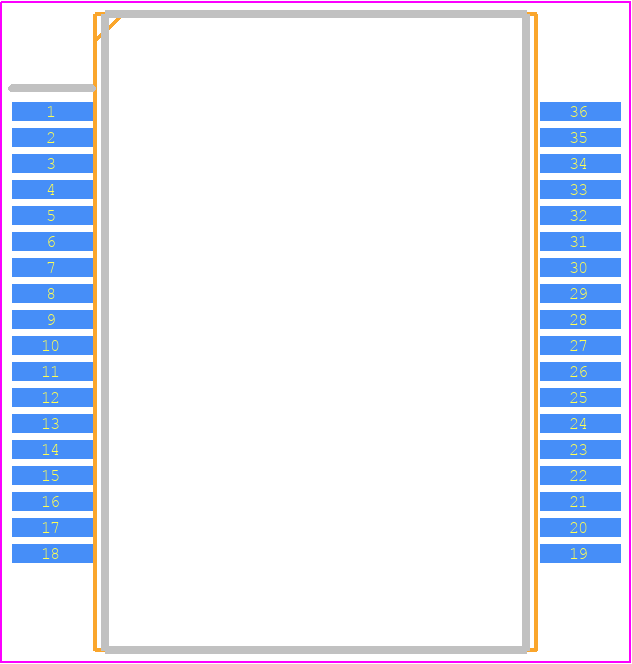

Use the download button to access the STA508 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA50,
or try a keyword search, such as Audio/Video Amplifiers
