STA515W13TR - STMicroelectronics

Description: 40 V, 3 A quad power half-bridge digital audio amplifier

Download STA515W13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

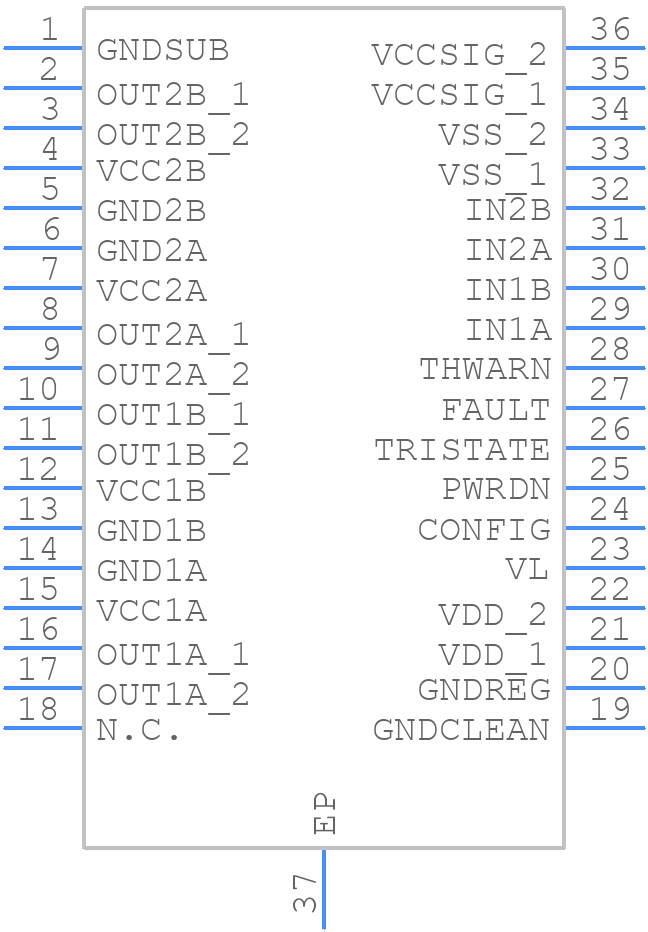

STA515W13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STA515W13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO 36_2022-2
click to zoom
3D Models
STA515W13TR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO 36_2022-2
click to zoom

STA515W13TR Details

  • Manufacturer Part Number:

    STA515W13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

STA515W13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4923, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The STA515W13TR datasheet provides general guidelines for output filter component selection, but for specific applications, it's recommended to use STMicroelectronics' online tools, such as the STPOWER Studio, to simulate and optimize the output filter design based on the target output voltage, current, and frequency.
  • The STA515W13TR is rated for operation up to 150°C, but high ambient temperatures can affect its performance and reliability. Engineers should consider derating the output power, increasing the heat sink size, and implementing thermal monitoring and protection mechanisms to ensure safe operation.
  • Yes, the STA515W13TR can be used in a parallel configuration to increase output power, but it's essential to ensure that the devices are properly synchronized and matched to avoid oscillations and uneven current sharing. STMicroelectronics provides guidelines for parallel operation in the application note AN4924.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4925, which covers common issues, diagnostic techniques, and repair procedures for the STA515W13TR. Engineers can also consult the device's datasheet and STMicroelectronics' support resources for additional guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA515W13TR Overview

Use the download button to access the STA515W13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA51, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics
