STA516B13TR - STMicroelectronics

Description: Audio Amplifiers 65-Volt 7.5-amp QUAD Half-Bridge AMP

Download STA516B13TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

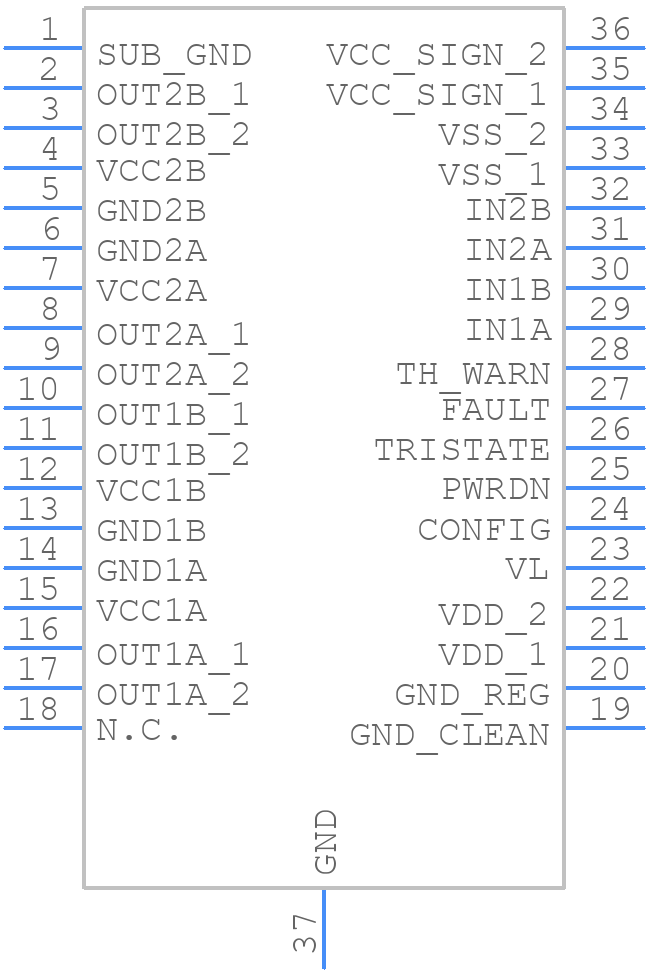

STA516B13TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

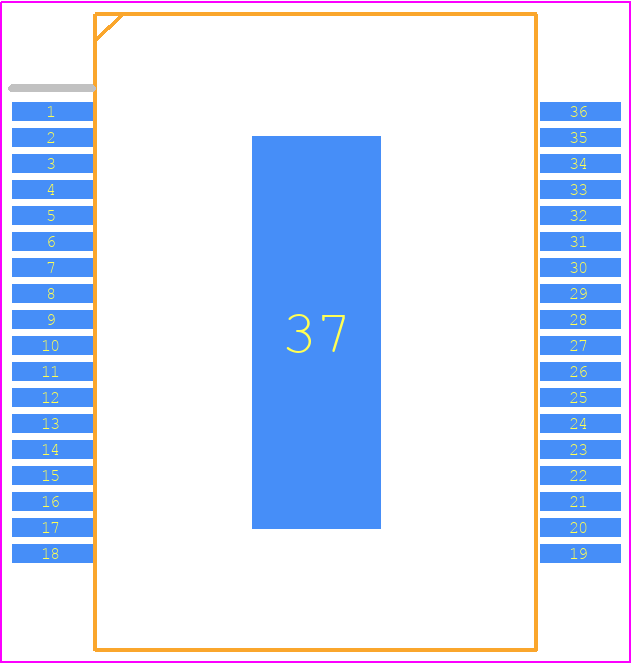

STA516B13TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - VCC_SIGN
click to zoom
3D Models
STA516B13TR - STMicroelectronics - 3D model - Small Outline Packages - VCC_SIGN
click to zoom

STA516B13TR Details

  • Manufacturer Part Number:

    STA516B13TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.2

  • Consumer IC Type:

    AUDIO/VIDEO AMPLIFIER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Package Code:

    FBGA

  • Peak Reflow Temperature (Cel):

    245

  • Terminal Finish:

    Matte Tin (Sn)

STA516B13TR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the heat sink or PCB.
  • STMicroelectronics recommends soldering the device using a reflow soldering process with a peak temperature of 260°C and a dwell time of 30-60 seconds. Hand soldering is not recommended due to the device's small size and high pin density.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Also, verify that the device is properly configured and that the output capacitor is of sufficient value and type.
  • STMicroelectronics recommends using a 10uF ceramic capacitor for the input capacitor and a 22uF ceramic capacitor for the output capacitor. The capacitors should be placed as close to the device as possible to minimize parasitic inductance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA516B13TR Overview

Use the download button to access the STA516B13TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA51, or try a keyword search, such as Audio/Video Amplifiers
