STA540SA - STMicroelectronics

Description: Audio Amp Speaker 1-CH Mono/2-CH Stereo/4-CH Stereo 20W Class-AB 19-Pin Clipwatt Tube

Download STA540SA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

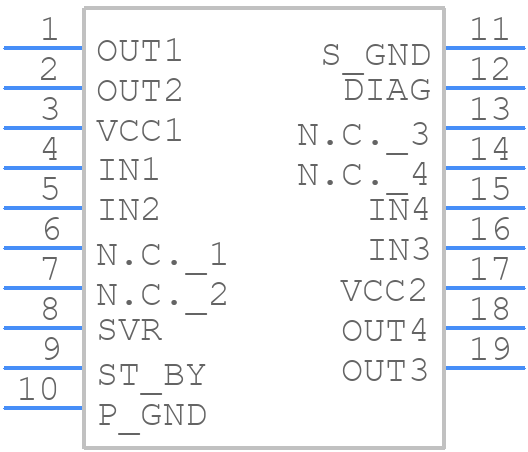

STA540SA - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

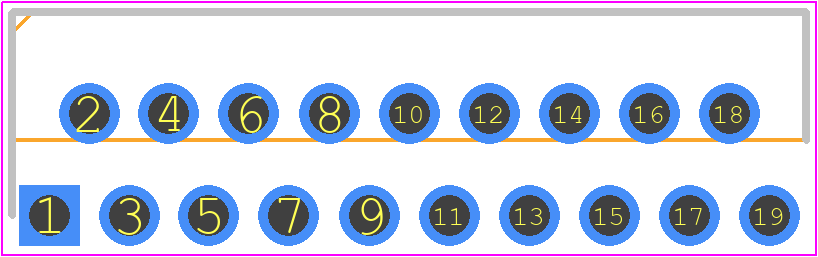

STA540SA - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - Clipwatt19
click to zoom
3D Models
STA540SA - STMicroelectronics - 3D model - Transistor Outline, Vertical - Clipwatt19
click to zoom

STA540SA Details

  • Manufacturer Part Number:

    STA540SA

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CLIPWATT-19

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    10 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    R-XZFM-T19

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    ZFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    ZIG-ZAG

STA540SA Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the STA540SA is 4.5V to 18V, with a typical voltage of 12V.
  • The STA540SA can be configured for mono or stereo operation by connecting the BTL (Bridge-Tied Load) pins accordingly. For mono operation, connect the BTL pins together, and for stereo operation, connect the left and right channel pins separately.
  • The maximum power output of the STA540SA is 2 x 20W (40W total) into a 4Ω load, or 2 x 15W (30W total) into an 8Ω load.
  • The STA540SA has a built-in thermal shutdown feature that turns off the device when it overheats. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
  • Yes, the STA540SA is a class-D audio amplifier, and it can be used in a class-D amplifier design. However, it requires an external controller and a suitable power supply to operate.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA540SA Overview

Use the download button to access the STA540SA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA54, or try a keyword search, such as Audio/Video Amplifiers
