STA540SAN - STMicroelectronics

STA540SAN Details

• Manufacturer Part Number:

  STA540SAN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

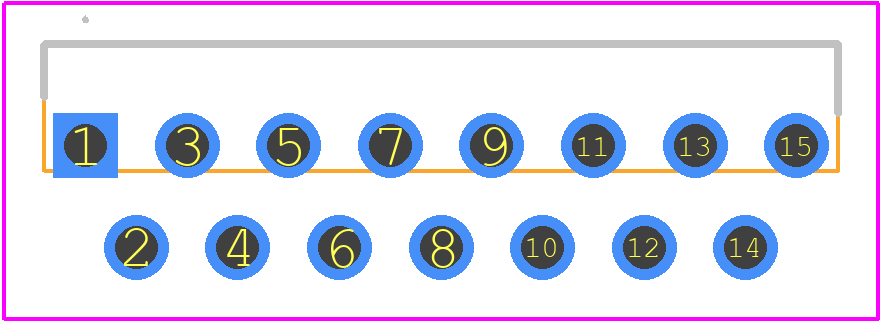

• Package Description:

  CLIPWATT-15

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Bandwidth-Nom:

  10 kHz

• Consumer IC Type:

  AUDIO AMPLIFIER

• Gain:

  20 dB

• Harmonic Distortion:

  10%

• JESD-30 Code:

  R-XZIP-T15

• JESD-609 Code:

  e3

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  15

• Operating Temperature-Max:

  70 °C

• Output Power-Nom:

  20 W

• Package Body Material:

  UNSPECIFIED

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP15,.1,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  150 mA

• Supply Voltage-Max (Vsup):

  22 V

• Supply Voltage-Min (Vsup):

  8 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG
