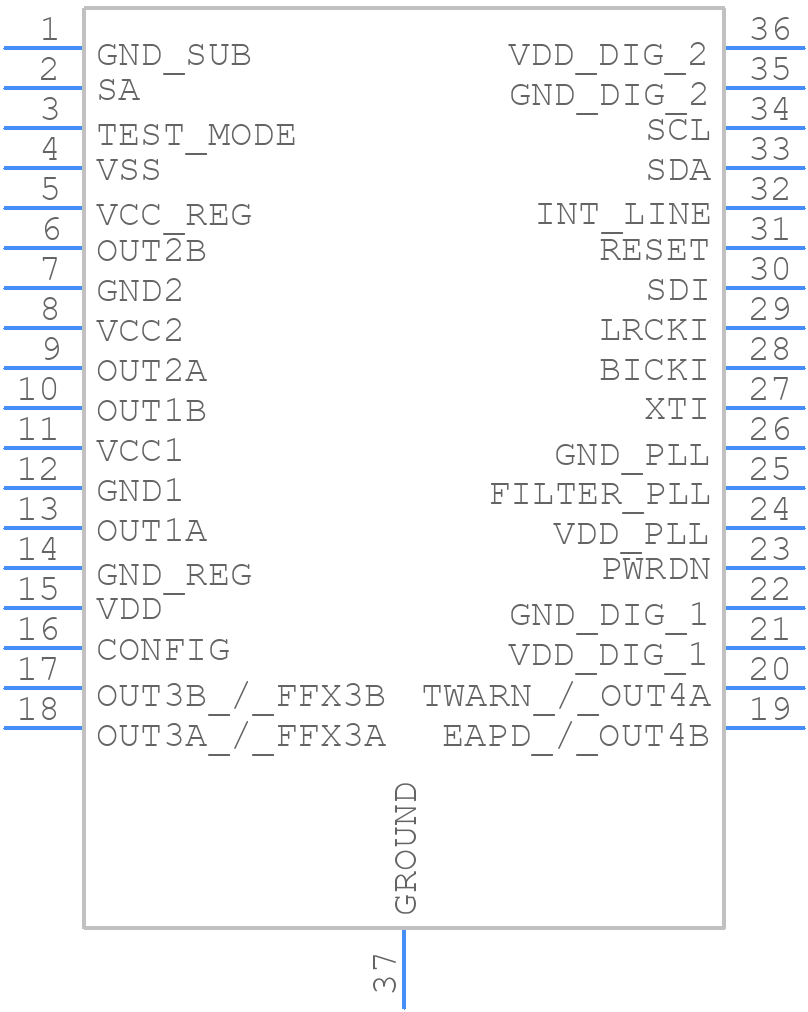

STA559BW - STMicroelectronics

STA559BW Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the STA559BW?
  The recommended power-up sequence is to apply VDD first, followed by VDDA, and then the clock signal. This ensures proper initialization of the device.
• How do I configure the STA559BW for master clock mode?
  To configure the STA559BW for master clock mode, set the MCLK pin as the clock source, and set the MCLKDIV bits in the Clock Control Register (CCR) to divide the master clock frequency to the desired value.
• What is the purpose of the NOISE_GATE pin, and how do I use it?
  The NOISE_GATE pin is used to enable or disable the noise gate function, which reduces noise and hiss in the audio signal. To use it, connect the pin to VDD or GND to enable or disable the noise gate function, respectively.
• How do I optimize the STA559BW for low power consumption?
  To optimize the STA559BW for low power consumption, use the Power Management Register (PMR) to disable unused blocks, reduce the clock frequency, and adjust the voltage regulator settings. Additionally, consider using the device's low-power modes, such as the Power Down mode.
• What is the maximum allowed capacitance for the analog input coupling capacitors?
  The maximum allowed capacitance for the analog input coupling capacitors is 10uF. Exceeding this value may affect the device's performance and stability.
