STA680 - STMicroelectronics

Description: HD Radio Baseband Receiver LFBGA168 STMicroelectronics STA680 RF Receiver Chip, 1.14 ??? 1.26 V, FM, 168-Pin LFBGA

Download STA680 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STA680 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

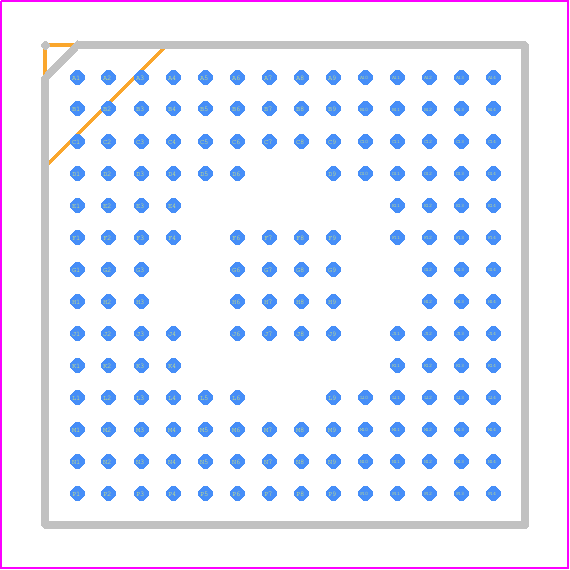

STA680 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA168 (12x12x1.4 mm) p
click to zoom
3D Models
STA680 - STMicroelectronics - 3D model - BGA - LFBGA168 (12x12x1.4 mm) p
click to zoom

STA680 Details

  • Manufacturer Part Number:

    STA680

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    BGA

  • Package Description:

    LFBGA-168

  • Pin Count:

    168

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B168

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    168

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

STA680 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STA680 is -40°C to 125°C. However, it's essential to note that the device can operate at a junction temperature (TJ) up to 150°C, but the reliability and performance may be affected.
  • To ensure proper power-up, it's recommended to follow a specific power-up sequence: VCC should be powered up first, followed by VDD, and then the clock signal. Additionally, the power supply should be stable and within the recommended voltage range (1.8V to 3.6V) to avoid any malfunction or damage to the device.
  • The STA680 can support clock frequencies up to 100 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information on clock frequency and signal quality requirements.
  • The STA680 can be configured for I2S or SPI mode by setting the appropriate pins and registers. For I2S mode, the WS pin should be set high, and the SDIN pin should be connected to the I2S data input. For SPI mode, the WS pin should be set low, and the SDIN pin should be connected to the SPI data input. Additionally, the device's registers should be configured accordingly using the control interface (e.g., I2C or SPI). Consult the datasheet and application notes for more information on configuration and register settings.
  • The typical power consumption of STA680 depends on the operating mode, clock frequency, and other factors. According to the datasheet, the typical power consumption is around 10 mA in active mode and 10 μA in standby mode. However, the actual power consumption may vary depending on the specific application and usage. It's recommended to consult the datasheet and perform power consumption measurements in the target application to get accurate results.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STA680 Overview

Use the download button to access the STA680 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STA68, or try a keyword search, such as Other Consumer ICs
