STB30NM60ND - STMicroelectronics

Description: MOSFET N-channel 600V, 25A FDMesh II

Download STB30NM60ND Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

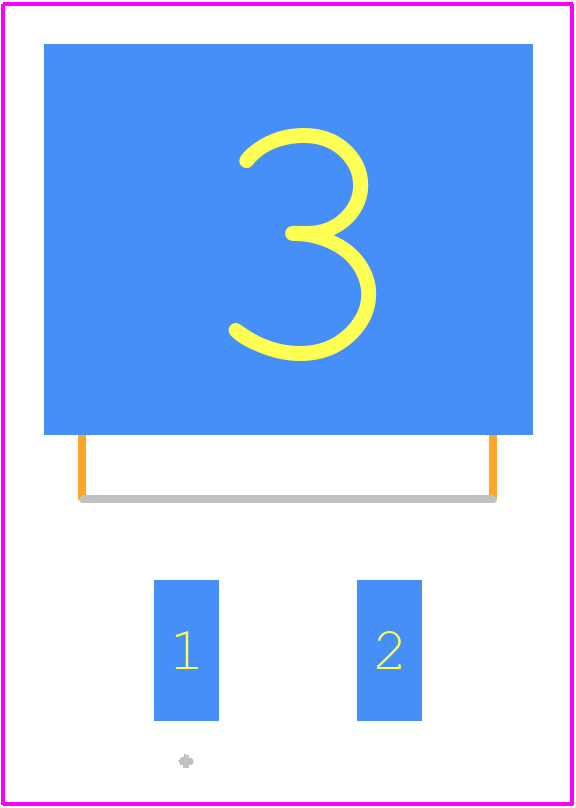

STB30NM60ND - STMicroelectronics PCB footprint - Other - Other - ST_D2PAK
click to zoom
3D Models
STB30NM60ND - STMicroelectronics  - 3D model - Other - ST_D2PAK
click to zoom

STB30NM60ND Details

  • Manufacturer Part Number:

    STB30NM60ND

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    D2PAK

  • Package Description:

    ROHS COMPLIANT, TO-263, D2PAK-3

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    900 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    25 A

  • Drain-source On Resistance-Max:

    0.385 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    190 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STB30NM60ND Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) of the STB30NM60ND is 150°C, but it's recommended to keep it below 125°C for reliable operation.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 1°C/W, and ensuring good airflow around the device. The PCB layout should also be designed to minimize thermal resistance.
  • The recommended gate drive voltage for the STB30NM60ND is between 10V and 15V, with a maximum of 20V. A higher gate drive voltage can reduce switching losses, but may also increase gate oxide stress.
  • Yes, the STB30NM60ND can be used in a parallel configuration, but it's essential to ensure that the devices are properly matched and that the gate drive signals are synchronized to prevent shoot-through currents.
  • The maximum allowed dv/dt for the STB30NM60ND is 10kV/μs, but it's recommended to limit it to 5kV/μs or less to prevent voltage overshoots and ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STB30NM60ND Overview

Use the download button to access the STB30NM60ND schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STB30, or try a keyword search, such as Power Field-Effect Transistors

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
