STBC02AJR - STMicroelectronics

Description: STMICROELECTRONICS - STBC02AJR - Battery Charger, 1 Cell Li-Ion, Li-Pol Battery, 5.4V in, 4.45V / 450 mA charge, Flip-Chip-30

Download STBC02AJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

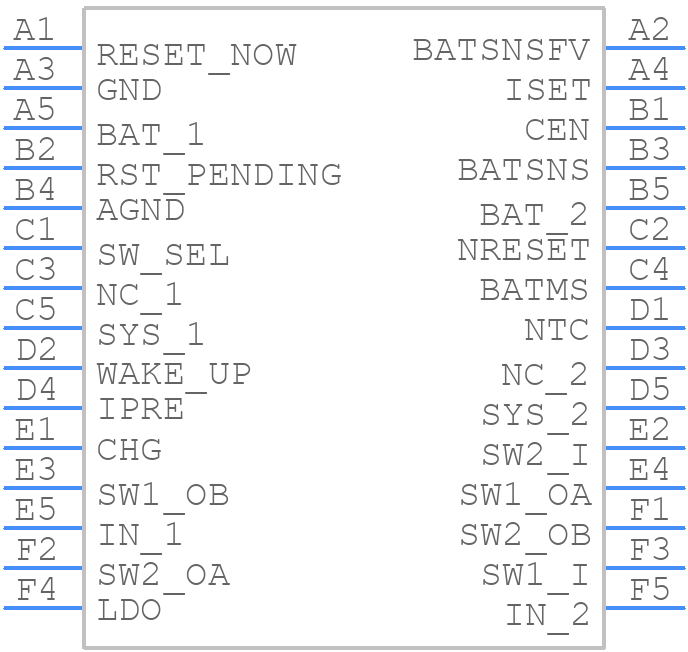

STBC02AJR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STBC02AJR - STMicroelectronics PCB footprint - BGA - BGA - Flip Chip 30 (2.59 x 2.25 mm)
click to zoom
3D Models
STBC02AJR - STMicroelectronics - 3D model - BGA - Flip Chip 30 (2.59 x 2.25 mm)
click to zoom

STBC02AJR Details

  • Manufacturer Part Number:

    STBC02AJR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLIP CHIP-30

  • Manufacturer Package Code:

    Chip Scale Package 0.4mm pitch

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    OTHER SUPPLY VOLTAGE= 4.75 V TO 5.4 V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.59 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    4.55 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.25 mm
