STBC02JR - STMicroelectronics

Description: Battery Management Li-Ion linear battery charger with LDO, load switches and reset generator

Download STBC02JR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

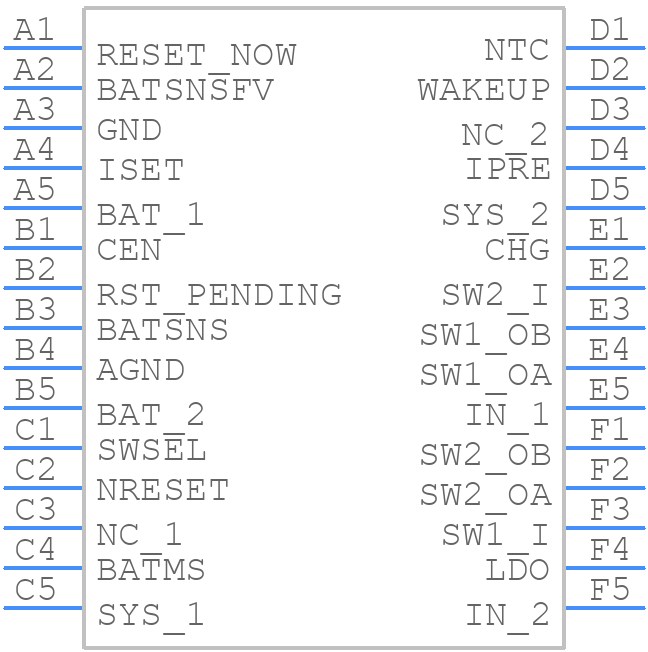

STBC02JR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STBC02JR - STMicroelectronics PCB footprint - BGA - BGA - Flip Chip 30 (2.59 x 2.25 mm)
click to zoom
3D Models
STBC02JR - STMicroelectronics - 3D model - BGA - Flip Chip 30 (2.59 x 2.25 mm)
click to zoom

STBC02JR Details

  • Manufacturer Part Number:

    STBC02JR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FLIP CHIP-30

  • Manufacturer Package Code:

    Chip Scale Package 0.4mm pitch

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    OTHER SUPPLY VOLTAGE= 4.75 V TO 5.4 V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.59 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    4.55 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.25 mm

STBC02JR Frequently Asked Questions (FAQs)

  • A good PCB layout for STBC02JR involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF ceramic capacitor with an ESR of less than 100mΩ is recommended.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent overheating.
  • To protect STBC02JR from overcurrent and overheating, it is recommended to add an external current limiter, such as a fuse or a PTC (Positive Temperature Coefficient) thermistor, and a thermal shutdown circuit.
  • While STBC02JR is rated for operation up to 125°C, it is recommended to derate the output current and input voltage at high temperatures to prevent overheating and ensure reliable operation.
