STBC03JR - STMicroelectronics

Description: STMICROELECTRONICS - STBC03JR - BATTERY CHARGER, LI-ION/POL, FLIPCHIP-30

Download STBC03JR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

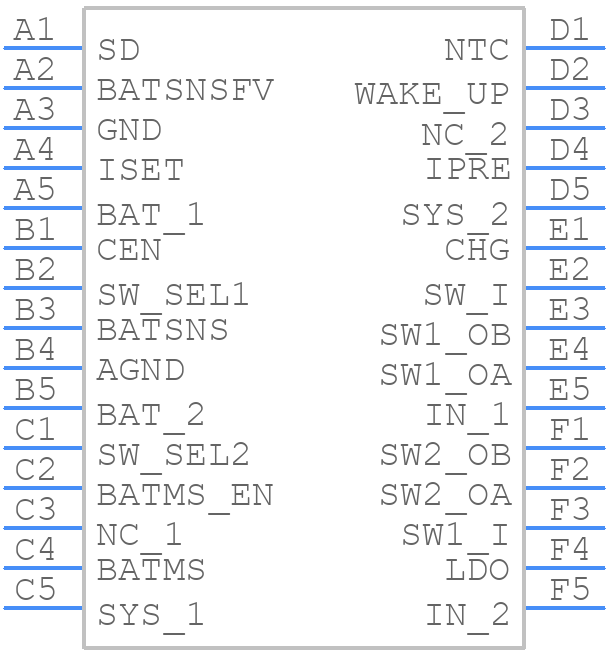

Symbol
STBC03JR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STBC03JR - STMicroelectronics PCB footprint - BGA - BGA - Flip Chip 30 (2.59x2.25 mm)
click to zoom
3D Models
STBC03JR - STMicroelectronics - 3D model - BGA - Flip Chip 30 (2.59x2.25 mm)
click to zoom

STBC03JR Details

  • Manufacturer Part Number:

    STBC03JR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-30

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2017-02-15

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    Thermal Shutdown:155C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    R-PBGA-B30

  • Length:

    2.59 mm

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.4 V

  • Supply Voltage-Min (Vsup):

    4.55 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.9V

  • Width:

    2.25 mm

STBC03JR Frequently Asked Questions (FAQs)

  • A good PCB layout for STBC03JR involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF ceramic capacitor with an ESR of less than 100mΩ is recommended.
  • Although the datasheet specifies a maximum input voltage of 18V, it is recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
  • To protect STBC03JR from overcurrent and overheating, it is recommended to add an external current limiting resistor and a thermal protection device, such as a thermistor or a thermal fuse, to the circuit.
  • While STBC03JR is rated for operation up to 125°C, it is recommended to derate the output current and voltage at high temperatures to ensure reliable operation and prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STBC03JR Overview

Use the download button to access the STBC03JR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STBC0, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
