STC3100IQT - STMicroelectronics

Description: STC3100IQT,Battery monitor IC,I2C,DFN8 STMicroelectronics STC3100IQT, Battery Fuel Gauge IC Lithium-Ion, 2.7 → 5.5 V, 8-Pin, DFN

Download STC3100IQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

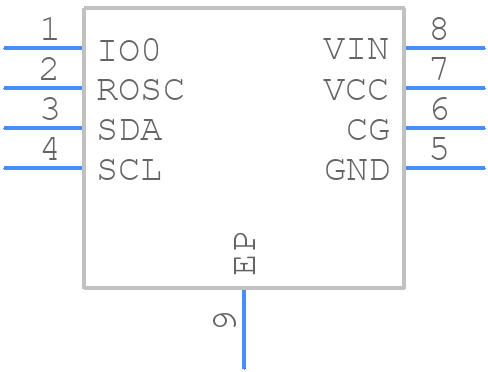

STC3100IQT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STC3100IQT - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8_2
click to zoom
3D Models
STC3100IQT - STMicroelectronics - 3D model - Small Outline No-lead - DFN8_2
click to zoom

STC3100IQT Details

  • Manufacturer Part Number:

    STC3100IQT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    3 X 3MM, 1 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, PLASTIC, DFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

STC3100IQT Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the STC3100IQT involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the STC3100IQT for low power consumption, use the lowest possible clock frequency, disable unnecessary peripherals, use the power-down mode, and adjust the voltage regulator to the lowest possible voltage. Additionally, use a low-power oscillator and minimize the number of transitions on the output pins.
  • The STC3100IQT has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range. A thermal pad is available on the package to help dissipate heat. A heat sink or thermal interface material can be used to improve heat dissipation.
  • The STC3100IQT has separate analog and digital grounds. The analog ground (AGND) should be connected to the digital ground (DGND) at a single point, usually near the device. This helps to minimize noise and ensure proper operation of the device.
  • The STC3100IQT has built-in ESD protection, but additional protection measures can be taken. Use ESD-sensitive handling procedures, and consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STC3100IQT Overview

Use the download button to access the STC3100IQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STC31, or try a keyword search, such as Power Management Circuits
