3 X 2 MM, 0.75 MM HEIGHT, 0.65 MM PITCH, ROHS COMPLIANT, PLASTIC, TDFN-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
STMicroelectronics
YTEOL:
0
Additional Feature:
RESET THRESHOLD VOLTAGE IS 2V
Adjustable Threshold:
YES
Analog IC - Other Type:
BATTERY GAUGE
JESD-30 Code:
R-PDSO-N8
Length:
3 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VSON
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2V
Width:
2 mm
STC3105IQT Frequently Asked Questions (FAQs)
The recommended layout and placement for the STC3105IQT involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To optimize the STC3105IQT for low power consumption, use the lowest possible frequency, disable unnecessary peripherals, use the power-down mode, and adjust the voltage regulator output to the minimum required voltage. Additionally, use a low-power oscillator and minimize the number of transitions on the output pins.
The STC3105IQT has a thermal junction-to-ambient thermal resistance of 30°C/W. To ensure reliable operation, the device should be operated within the recommended temperature range of -40°C to 125°C. A thermal pad on the underside of the package helps to dissipate heat, and a heat sink or thermal interface material can be used to further reduce thermal resistance.
To ensure EMC with the STC3105IQT, use a shielded enclosure, minimize loop areas in the PCB layout, use a common-mode choke on the power supply lines, and add decoupling capacitors to reduce electromagnetic emissions. Additionally, use a low-pass filter on the output pins and ensure that the device is operated within the recommended frequency range.
The STC3105IQT has built-in ESD protection, but additional protection measures can be taken to prevent damage from electrostatic discharge. Use ESD-sensitive handling procedures, ground all equipment and personnel, and use ESD-protective packaging and storage materials. Additionally, add external ESD protection devices, such as TVS diodes, to the input pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
STC3105IQT Overview

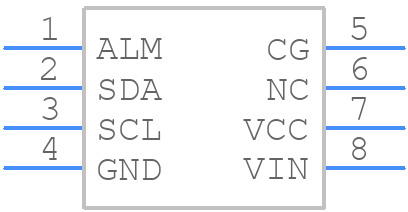

Use the download button to access the STC3105IQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STC31,
or try a keyword search, such as Power Management Circuits
