STC3115IJT footprint, schematic symbol and 3D model by STMicroelectronics

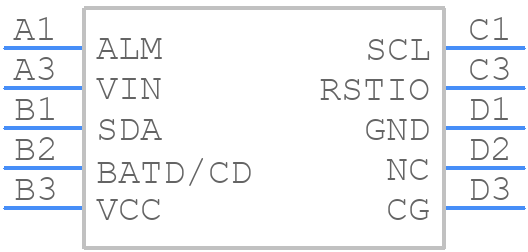

Symbol

click to zoom

PCB Footprints

STC3115IJT - STMicroelectronics PCB footprint - Other - Other - Flip Chip CSP 1.4 x 2.04 mm package

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STC3115IJT
Part Number STC3115IJT
Manufacturer STMicroelectronics
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - Flip Chip CSP 1.4 x 2.04 mm package
Released Date Nov 8, 2017
Last Modified Date Feb 6, 2026 10:43 AM UTC
Pinout / Pin List Click Here (Member Only)

STC3115IJT Details

Manufacturer Part Number:
STC3115IJT
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
1.40 X 2.04 MM, ROHS COMPLIANT, CSP-10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
6.5
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY GAUGE
JESD-30 Code:
R-PBGA-B10
Length:
2.01 mm
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA10,3X4,16
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
0.705 mm
Supply Current-Max (Isup):
0.1 mA
Supply Voltage-Max (Vsup):
4.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Width:
1.37 mm

STC3115IJT Frequently Asked Questions (FAQs)

The recommended layout and placement for the STC3115IJT involves placing the device close to the battery, using a solid ground plane, and keeping the analog and digital sections separate to minimize noise and interference.
To optimize the STC3115IJT for low power consumption, use the lowest possible clock frequency, disable unnecessary peripherals, and use the device's power-saving modes, such as the 'Low Power Mode' and 'Shutdown Mode'.
For thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. The device's thermal resistance (θJA) is 30°C/W, and the maximum junction temperature is 150°C.
For analog inputs, use an anti-aliasing filter to remove high-frequency noise, and ensure the input signal is within the specified range. For analog outputs, use a buffer or op-amp to drive the load, and ensure the output is within the specified range.
The STC3115IJT has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-safe environment.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STC3115IJT Overview

Use the download button to access the STC3115IJT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STC31, or try a keyword search, such as Power Management Circuits
