STCF03TBR - STMicroelectronics

Description: High power white LED driver with I²C interface

Download STCF03TBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

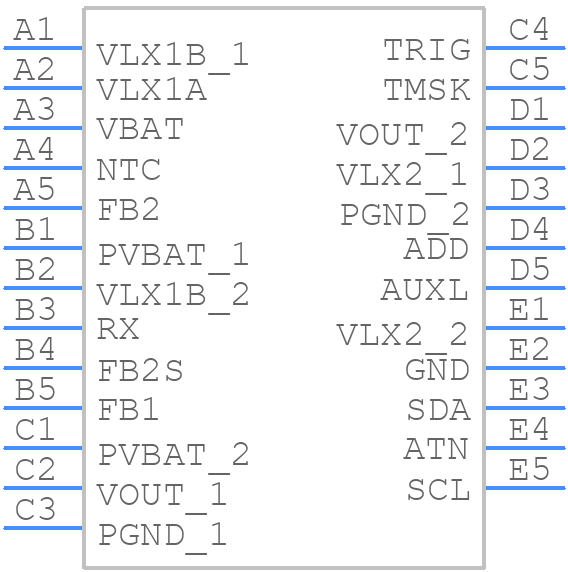

STCF03TBR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STCF03TBR - STMicroelectronics PCB footprint - BGA - BGA - TFBGA25_2026-1.1
click to zoom
3D Models
STCF03TBR - STMicroelectronics - 3D model - BGA - TFBGA25_2026-1.1
click to zoom

STCF03TBR Details

  • Manufacturer Part Number:

    STCF03TBR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TFBGA-25

  • Pin Count:

    25

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    WITH AUXILIARY LED OUTPUT

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA25,5X5,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.16 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    1.8 MHz

STCF03TBR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
  • Using a lower-rated input capacitor may lead to reduced performance, increased noise, and potential reliability issues. It is recommended to use an input capacitor with a voltage rating that meets or exceeds the maximum input voltage specified in the datasheet to ensure optimal performance and reliability.
  • No, the STCF03TBR is designed for isolated power supply applications and should not be used in non-isolated designs. The device is not intended for use in applications where the input and output voltages are not isolated, and doing so may compromise safety and reliability.
  • STMicroelectronics recommends using a common-mode choke and X-capacitors in the input stage to reduce electromagnetic interference (EMI). The specific filter design will depend on the application and regulatory requirements, but a good starting point is to use a common-mode choke with a minimum impedance of 100 ohms and X-capacitors with a minimum capacitance of 10nF.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCF03TBR Overview

Use the download button to access the STCF03TBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCF0, or try a keyword search, such as Display Drivers
