STCOMET10 - STMicroelectronics

Description: Smart meter and powerline communication system-on-chip

Download STCOMET10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STCOMET10 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

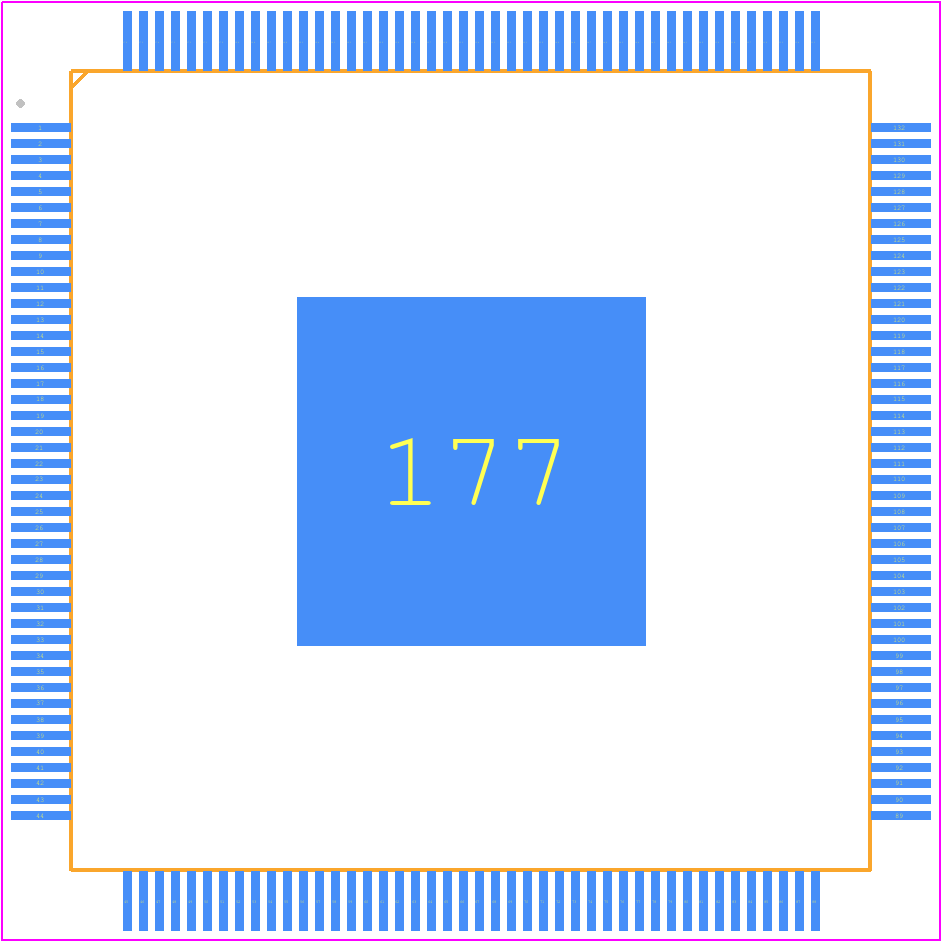

STCOMET10 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 176 20x20x1.0-1
click to zoom
3D Models
STCOMET10 - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 176 20x20x1.0-1
click to zoom

STCOMET10 Details

  • Manufacturer Part Number:

    STCOMET10

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-176

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    20 mm

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

STCOMET10 Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • To ensure reliable communication, use a reliable clock source, ensure proper signal termination, and implement error detection and correction mechanisms such as CRC and checksums.
  • The STCOMET10 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and use case.
  • Yes, the STCOMET10 is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
  • Use a logic analyzer or oscilloscope to debug the communication signals, and check the device's status registers and error flags to identify the source of the issue.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STCOMET10 Overview

Use the download button to access the STCOMET10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STCOM, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
