STD28P3LLH6AG - STMicroelectronics

STD28P3LLH6AG Details

• Manufacturer Part Number:

  STD28P3LLH6AG

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

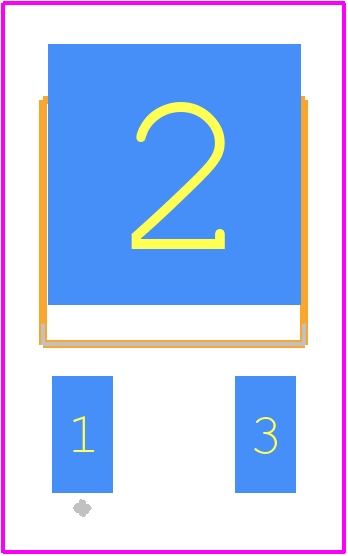

• Package Description:

  DPAK-3/2

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  BULK: 2500

• Avalanche Energy Rating (Eas):

  210 mJ

• Case Connection:

  DRAIN

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  30 V

• Drain Current-Max (ID):

  12 A

• Drain-source On Resistance-Max:

  0.05 Ω

• FET Technology:

  SPLIT GATE TRENCH MOSFET

• Feedback Cap-Max (Crss):

  125 pF

• JEDEC-95 Code:

  TO-252

• JESD-30 Code:

  R-PSSO-G2

• Number of Elements:

  1

• Number of Terminals:

  2

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Polarity/Channel Type:

  P-CHANNEL

• Power Dissipation-Max (Abs):

  33 W

• Pulsed Drain Current-Max (IDM):

  48 A

• Reference Standard:

  AEC-Q101

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
