STDRIVE102HTR - STMicroelectronics

Description: Triple half-bridge gate driver with programmable currents ,STMicroelectronics VFQFPN 40L 5X 5X1 0,4 PITCH ,6 to 50 V ,12 V LDO ,3.3 V LDO

Download STDRIVE102HTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

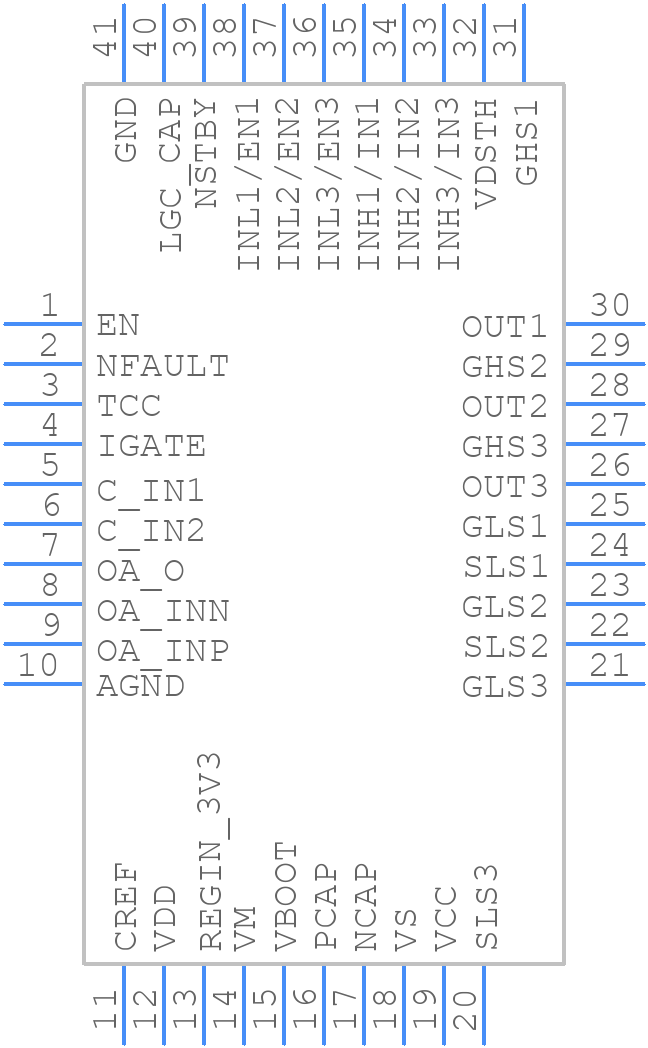

STDRIVE102HTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDRIVE102HTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 40L 5x5x1 mm, pitch 0.4 package outline_2025-1
click to zoom
3D Models
STDRIVE102HTR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 40L 5x5x1 mm, pitch 0.4 package outline_2025-1
click to zoom

STDRIVE102HTR Details

  • Manufacturer Part Number:

    STDRIVE102HTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STDRIVE102HTR Overview

Use the download button to access the STDRIVE102HTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STDRI, or try a keyword search, such as MOSFET Drivers
