STDRIVEG600TR - STMicroelectronics

Description: High voltage half-bridge gate driver for GaN transistors

Download STDRIVEG600TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

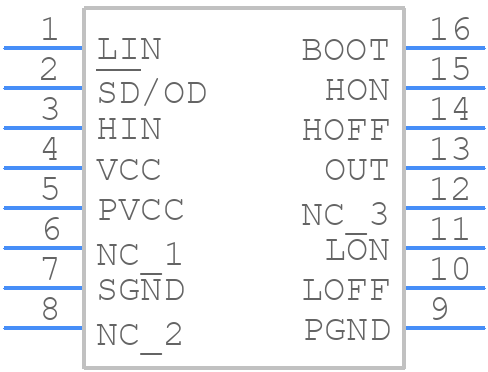

STDRIVEG600TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STDRIVEG600TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16_2021
click to zoom
3D Models
STDRIVEG600TR - STMicroelectronics - 3D model - Small Outline Packages - SO-16_2021
click to zoom

STDRIVEG600TR Details

  • Manufacturer Part Number:

    STDRIVEG600TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED GAN FET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    4.4 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3.9 mm

STDRIVEG600TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STDRIVEG600TR is -40°C to 150°C.
  • To ensure proper configuration, refer to the application note AN5323, which provides detailed guidelines for configuring the STDRIVEG600TR for various applications.
  • For optimal performance and thermal management, follow the PCB layout guidelines provided in the datasheet and application note AN5323, and ensure a minimum of 2oz copper thickness and a thermal pad connected to a heat sink or a thermal interface material.
  • Refer to the troubleshooting guide in the application note AN5323, which provides step-by-step procedures for identifying and resolving common issues with the STDRIVEG600TR.
  • Always follow proper safety precautions when handling the STDRIVEG600TR, including wearing protective gear, ensuring a safe working environment, and following proper handling and storage procedures to prevent damage or electrical shock.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STDRIVEG600TR Overview

Use the download button to access the STDRIVEG600TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STDRI, or try a keyword search, such as MOSFET Drivers
