STEF033PUR - STMicroelectronics

Description: Electronic fuse for 3.3 V line

Download STEF033PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

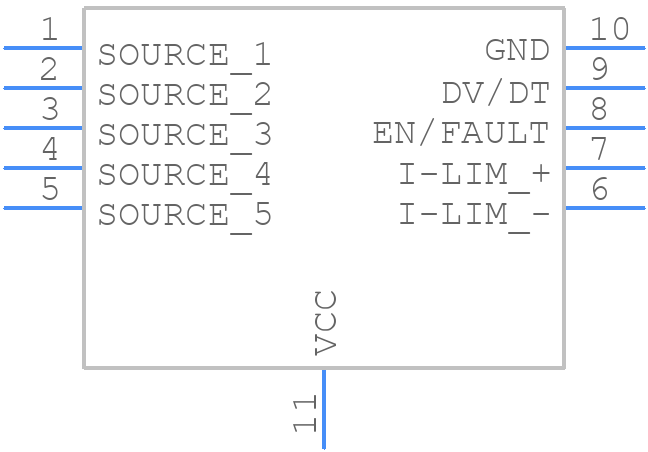

STEF033PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF033PUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 (3x3)
click to zoom
3D Models
STEF033PUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN10 (3x3)
click to zoom

STEF033PUR Details

  • Manufacturer Part Number:

    STEF033PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STEF033PUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the specific application requirements, to ensure optimal performance and stability.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges, and verify that the device is properly configured and connected.
  • STMicroelectronics recommends placing the input and output capacitors as close as possible to the device's pins, and orienting them to minimize loop inductance and ensure good thermal conduction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STEF033PUR Overview

Use the download button to access the STEF033PUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF0, or try a keyword search, such as Power Management Circuits
