- Part Number STEF05LAJR
- Manufacturer STMicroelectronics
- Pin Count 9
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - Flip Chip 9
- Released Date Sep 20, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
STEF05LAJR Details
-
Manufacturer Part Number:
STEF05LAJR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
BGA-9
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
STMicroelectronics
-
YTEOL:
3
-
Additional Feature:
JUNCTION TEMPERATURE CONSIDERED
STEF05LAJR Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1-10uF. Consult the application note AN4979 for more detailed guidance.
-
The maximum allowed voltage drop across the STEF05LAJR is 1.5V. Exceeding this voltage drop may lead to reduced efficiency, increased heat generation, or even damage to the device.
-
The STEF05LAJR is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal derating guidelines and ensure proper thermal management in your design.
-
To ensure EMC, follow the guidelines in the application note AN4979, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and/or a ferrite bead to filter out electromagnetic interference.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
STEF05LAJR Overview

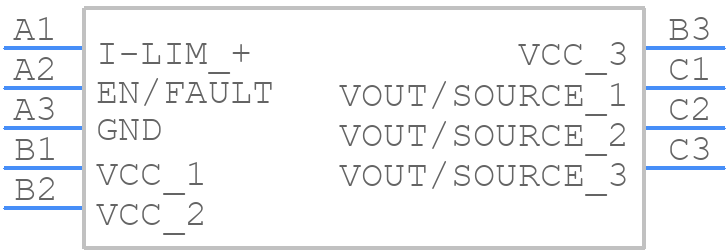

Use the download button to access the STEF05LAJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF0,
or try a keyword search, such as Power Management Circuits
