STEF05PUR - STMicroelectronics

Description: STMicroelectronics STEF05PUR, 1-Channel, Hot Swap Controller, 5 V 10-Pin, DFN

Download STEF05PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

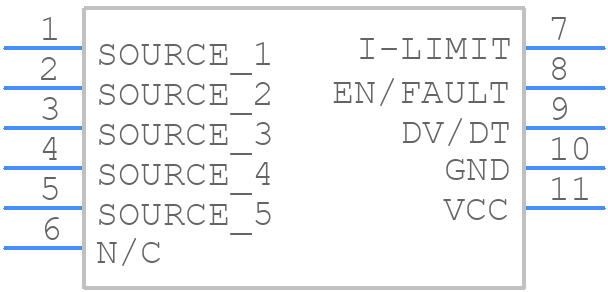

STEF05PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF05PUR - STMicroelectronics PCB footprint - Other - Other - STEF05PUR-2
click to zoom
3D Models
STEF05PUR - STMicroelectronics - 3D model - Other - STEF05PUR-2
click to zoom

STEF05PUR Details

  • Manufacturer Part Number:

    STEF05PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    JUNCTION TEMPERATURE CONSIDERED

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STEF05PUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the specific application requirements, to ensure optimal performance and stability.
  • To protect the device from overvoltage and overcurrent conditions, it is recommended to use a TVS diode or a voltage regulator with overcurrent protection, and to ensure that the input voltage and current are within the recommended operating range.
  • STMicroelectronics recommends placing the output capacitor as close as possible to the device, using a short and wide trace, and avoiding any vias or thermal reliefs under the capacitor to minimize parasitic inductance and ensure optimal performance.
