Part Image

STEF05SGR - STMicroelectronics

Description: Electronic Fuse Regulator - 3.6A 10-DFN (3x3)

Download STEF05SGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

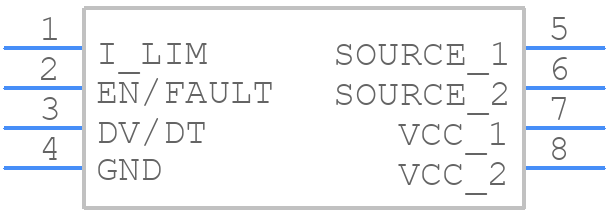

Symbol
STEF05SGR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF05SGR - STMicroelectronics PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - STEF05SGR
click to zoom
3D Models
STEF05SGR - STMicroelectronics - 3D model - SOT23 (8-Pin) - STEF05SGR
click to zoom

STEF05SGR Details

  • Manufacturer Part Number:

    STEF05SGR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

STEF05SGR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN4979 for more detailed guidance.
  • The STEF05SGR is rated for operation up to 150°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation above 125°C ambient temperature.
  • To ensure EMC, follow the guidelines in the application note AN4979, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a common-mode choke and a Y-capacitor to filter out electromagnetic interference.
  • The typical efficiency of the STEF05SGR is around 95% to 97% depending on the input voltage, output voltage, and output current. Refer to the datasheet for more detailed efficiency curves.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STEF05SGR Overview

Use the download button to access the STEF05SGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF0, or try a keyword search, such as Power Management Circuits
