STEF12SAGR - STMicroelectronics

Description: Electronic fuse for 12 V line

Download STEF12SAGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

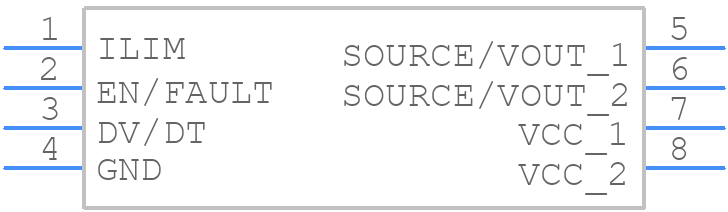

STEF12SAGR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF12SAGR - STMicroelectronics PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TSOT23-8L_2021
click to zoom
3D Models
STEF12SAGR - STMicroelectronics - 3D model - SOT23 (8-Pin) - TSOT23-8L_2021
click to zoom

STEF12SAGR Details

  • Manufacturer Part Number:

    STEF12SAGR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-13

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:5.5A; THERMAL SHUTDOWN:165C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    13.8 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

STEF12SAGR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the STEF12SAGR application note (AN5275) which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Additionally, consider the capacitor's ESR, ripple current, and temperature rating.
  • The maximum allowed voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
  • The STEF12SAGR is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation. Additionally, the device's performance and lifespan may be affected by high temperatures, so it's crucial to consult the datasheet and application notes for guidance.
  • To troubleshoot STEF12SAGR-related issues, start by verifying the input voltage, current, and frequency. Check for proper PCB layout, thermal management, and component selection. Use oscilloscopes and current probes to measure waveforms and currents. Consult the datasheet, application notes, and STMicroelectronics' support resources for guidance.
