Part Image

STEF12SAPUR - STMicroelectronics

Description: Electronic fuse for 12 V line

Download STEF12SAPUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

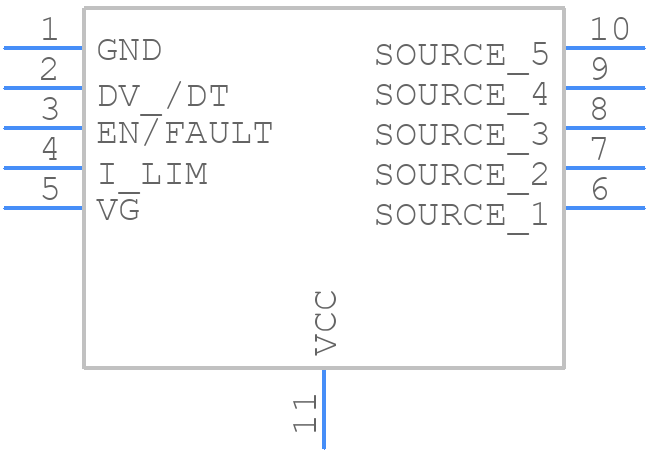

STEF12SAPUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEF12SAPUR - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 (3x3)-1
click to zoom
3D Models
STEF12SAPUR - STMicroelectronics - 3D model - Small Outline No-lead - DFN10 (3x3)-1
click to zoom

STEF12SAPUR Details

  • Manufacturer Part Number:

    STEF12SAPUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2020-05-29

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:5.5A; THERMAL SHUTDOWN:165C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    IEC 62368-1

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    13.8 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

STEF12SAPUR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the STEF12SAPUR application note (AN5275). It suggests using a 2-layer or 4-layer PCB with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal pad. Additionally, ensure proper PCB design, layout, and thermal management to minimize thermal resistance.
  • Although the datasheet specifies a maximum VIN voltage of 5.5V, it's recommended to limit the voltage to 5V to ensure reliable operation and prevent damage to the internal voltage regulator.
  • To configure the STEF12SAPUR for low-power mode, set the EN pin low, and ensure the VIN pin is within the specified voltage range. You can also use the PMODE pin to select between low-power and normal modes. Refer to the datasheet for specific configuration details.
  • The typical current consumption in low-power mode is around 10-20 μA, depending on the specific configuration and operating conditions. Refer to the datasheet for more detailed information on current consumption in different modes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STEF12SAPUR Overview

Use the download button to access the STEF12SAPUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STEF1, or try a keyword search, such as Power Management Circuits
