STEL12H24PUR - STMicroelectronics

Description: Electronic switch for 12 V, 5 V and 3.3 V buses

Download STEL12H24PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

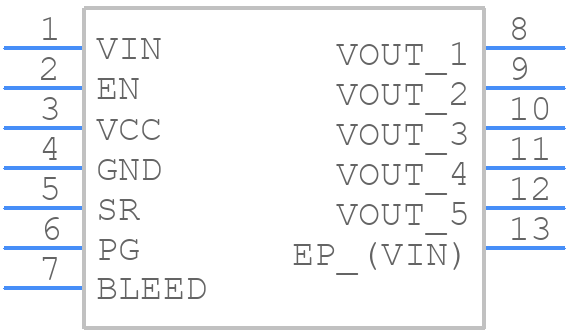

Symbol
STEL12H24PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STEL12H24PUR - STMicroelectronics PCB footprint - Other - Other - STEL12H24PUR-2
click to zoom
3D Models
STEL12H24PUR - STMicroelectronics - 3D model - Other - STEL12H24PUR-2
click to zoom

STEL12H24PUR Details

  • Manufacturer Part Number:

    STEL12H24PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Supply Voltage-Max (Vsup):

    13.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    17.5

  • Width:

    3 mm

STEL12H24PUR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature range.
  • The maximum allowed voltage on the input pins is 5.5V, and it's recommended to use a voltage limiter or a voltage regulator to prevent damage from voltage spikes or overvoltage conditions.
  • While the STEL12H24PUR is not specifically designed for high-humidity environments, it can still be used with proper precautions, such as conformal coating, hermetic sealing, or using a moisture-resistant package.
  • To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and PCB layout for any signs of overheating or voltage drops. Also, verify that the device is properly configured and that the output voltage is within the specified range.
