STELPD01PUR - STMicroelectronics

Description: Electronic load switch for power line

Download STELPD01PUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

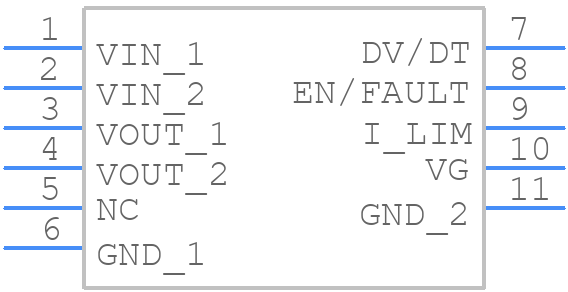

Symbol
STELPD01PUR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STELPD01PUR - STMicroelectronics PCB footprint - Other - Other - DFN10L (3x3 mm)
click to zoom
3D Models
STELPD01PUR - STMicroelectronics - 3D model - Other - DFN10L (3x3 mm)
click to zoom

STELPD01PUR Details

  • Manufacturer Part Number:

    STELPD01PUR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:5.15A; THERMAL SHUTDOWN:165C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    16.8 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    2.9

  • Width:

    3 mm

STELPD01PUR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. STMicroelectronics recommends using a capacitor with a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
  • The STELPD01PUR is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation. Consult the datasheet and application notes for specific derating guidelines.
  • STMicroelectronics recommends using external components, such as zener diodes and resistors, to implement OVP and UVP. The application note AN5323 provides a detailed example of an OVP and UVP circuit implementation.
  • The output capacitor value and type depend on the output voltage and current. A general guideline is to use a capacitor with a value between 1uF to 22uF, with a voltage rating higher than the output voltage. STMicroelectronics recommends using a low-ESR capacitor, such as a ceramic or film capacitor, to minimize voltage ripple and ensure stable operation.
