STF4LN80K5 - STMicroelectronics

Description: N-channel 800 V, 2.1 Ω typ., 3 A MDmesh™ K5 Power MOSFET in a TO-220FP package

Download STF4LN80K5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STF4LN80K5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

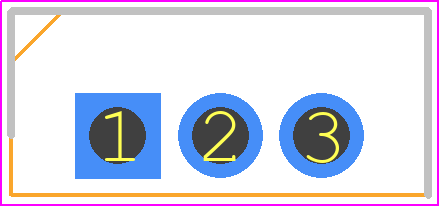

STF4LN80K5 - STMicroelectronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220FP_2022
click to zoom
3D Models
STF4LN80K5 - STMicroelectronics - 3D model - Transistor Outline, Vertical - TO-220FP_2022
click to zoom

STF4LN80K5 Details

  • Manufacturer Part Number:

    STF4LN80K5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220FP, 3 PIN

  • Manufacturer Package Code:

    TO-220FP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    4

  • Avalanche Energy Rating (Eas):

    160 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    800 V

  • Drain Current-Max (ID):

    2.6 A

  • Drain-source On Resistance-Max:

    3.5 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    0.3 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    20 W

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

STF4LN80K5 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the STF4LN80K5 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure the device's lifespan.
  • To ensure proper cooling, it's essential to provide a good thermal path from the device to a heat sink or a metal plate. Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK, and ensure the heat sink is designed for the device's power dissipation. Additionally, follow the recommended PCB layout and thermal design guidelines provided by STMicroelectronics.
  • The recommended gate drive voltage for the STF4LN80K5 is between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency. It's essential to consult the application notes and gate drive circuit design guidelines provided by STMicroelectronics.
  • Yes, the STF4LN80K5 can be used in a parallel configuration to increase current handling. However, it's crucial to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Consult the application notes and parallel configuration guidelines provided by STMicroelectronics for more information.
  • The STF4LN80K5 has an integrated ESD protection circuit, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Ensure that the device is handled in an ESD-protected environment, and use ESD-protected packaging and storage materials.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STF4LN80K5 Overview

Use the download button to access the STF4LN80K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STF4L, or try a keyword search, such as Power Field-Effect Transistors
