STG1218IQT - STMicroelectronics

Description: Dual supply, quad SPDT switch, 1.8 V and 3.3 V logic input compatible

Download STG1218IQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

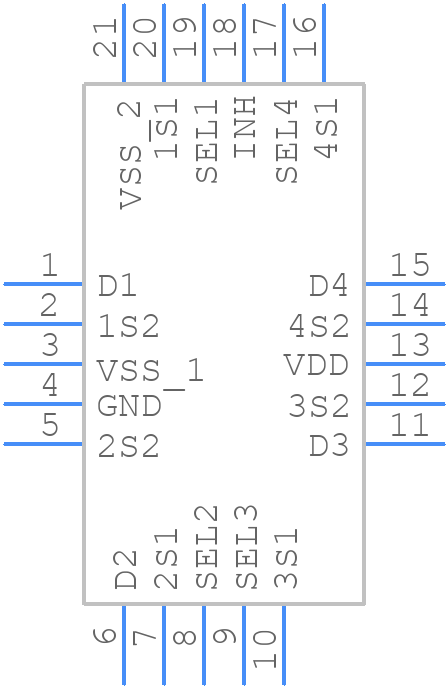

Symbol
STG1218IQT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG1218IQT - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20 (4x4 mm) package*
click to zoom
3D Models
STG1218IQT - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN20 (4x4 mm) package*
click to zoom

STG1218IQT Details

  • Manufacturer Part Number:

    STG1218IQT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    66 dB

  • On-state Resistance Match-Nom:

    0.3 Ω

  • On-state Resistance-Max (Ron):

    14 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.15 A

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    850 ns

  • Switch-on Time-Max:

    855 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

STG1218IQT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5153, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN5153 for more detailed guidance.
  • The maximum allowed voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the control signal is higher than 6V.
  • To ensure stability, follow the recommended PCB layout, use a sufficient input capacitor, and ensure the output capacitor is properly sized. Additionally, avoid using long traces and minimize the loop area of the feedback network. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the output and ground.
  • The minimum input voltage required for the STG1218IQT to operate is 2.5V. However, the device can operate down to 2.2V with reduced performance and efficiency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STG1218IQT Overview

Use the download button to access the STG1218IQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STG12, or try a keyword search, such as Multiplexers or Switches
