STG5223QTR - STMicroelectronics

Description: Low voltage 0.5 Ω dual SPDT switch with break-before-make

Download STG5223QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

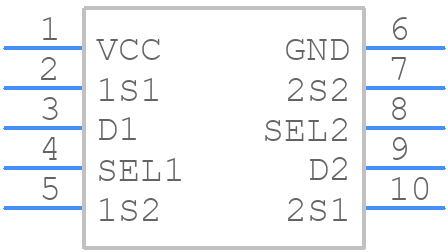

Symbol
STG5223QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG5223QTR - STMicroelectronics PCB footprint - Other - Other - QFN10 (1.8 x 1.4 x 0.5 mm)
click to zoom
3D Models
STG5223QTR - STMicroelectronics - 3D model - Other - QFN10 (1.8 x 1.4 x 0.5 mm)
click to zoom

STG5223QTR Details

  • Manufacturer Part Number:

    STG5223QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    1.80 X 1.40 MM, ROHS COMPLIANT, QFN-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    66 dB

  • On-state Resistance-Max (Ron):

    0.55 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.05X.06,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    40 ns

  • Switch-on Time-Max:

    65 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.4 mm

STG5223QTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Refer to the application note AN4553 for more detailed guidance.
  • The maximum junction temperature (Tj) for the STG5223QTR is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • Yes, the STG5223QTR is rated for operation up to 125°C ambient temperature. However, it's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and maintain reliability.
  • Start by checking the input voltage, output voltage, and output current. Verify that the input capacitor is properly selected and connected. Check for thermal issues, such as poor heat sinking or blocked airflow. Consult the application note AN4553 and the datasheet for troubleshooting guidelines and diagrams.
