STG5682QTR - STMicroelectronics

Description: Analog Switch ICs Lo Vltg dual SPDTswitch

Download STG5682QTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

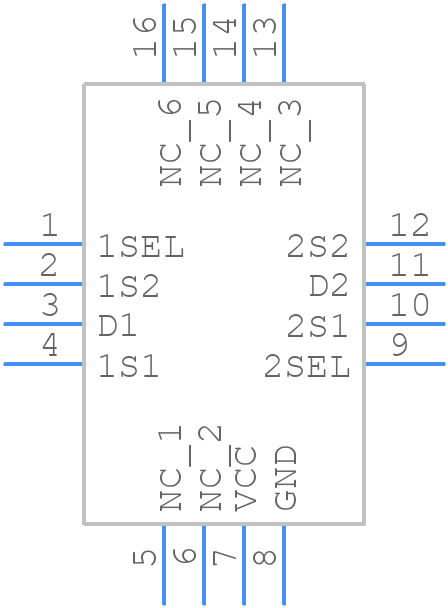

STG5682QTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STG5682QTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16L (2.6mm x 1.8mm)
click to zoom
3D Models
STG5682QTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16L (2.6mm x 1.8mm)
click to zoom

STG5682QTR Details

  • Manufacturer Part Number:

    STG5682QTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    2.60 X 1.80 MM, LEAD FREE, QFN-16

  • Pin Count:

    16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance Match-Nom:

    0.05 Ω

  • On-state Resistance-Max (Ron):

    4 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    80 ns

  • Switch-on Time-Max:

    220 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.8 mm

STG5682QTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The STG5682QTR has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat efficiently. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The STG5682QTR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure the device operates within the specified temperature range to maintain reliability and prevent thermal damage.
  • The STG5682QTR has an adjustable output voltage range from 0.6V to 3.3V. To configure the output voltage, use the VSENSE pin and an external resistor divider network to set the desired output voltage. Refer to the datasheet and application notes for specific configuration guidelines.
  • To minimize EMI and noise, use a pi-filter (L-C-L) configuration on the input and output lines, and ensure good PCB layout practices, such as separating analog and digital grounds, using ground planes, and minimizing loop areas. Additionally, consider using shielding and filtering components, such as ferrite beads and capacitors, to reduce high-frequency noise.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STG5682QTR Overview

Use the download button to access the STG5682QTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STG56, or try a keyword search, such as Multiplexers or Switches
