STGAP1BSTR - STMicroelectronics

Description: Automotive galvanically isolated advanced single gate driver

Download STGAP1BSTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

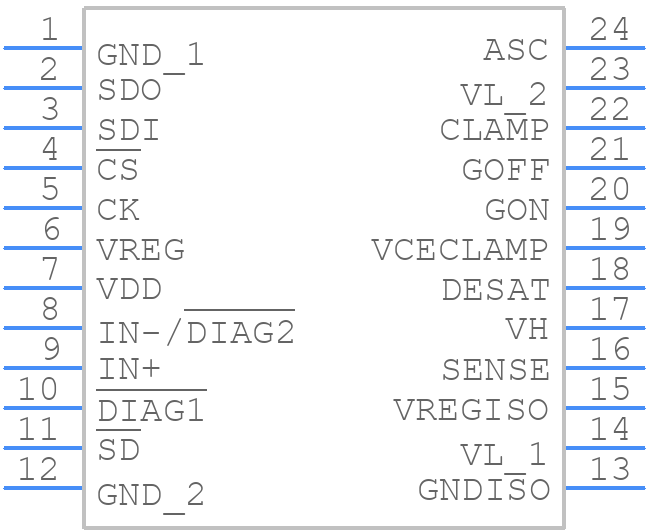

STGAP1BSTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP1BSTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO24W-1
click to zoom
3D Models
STGAP1BSTR - STMicroelectronics - 3D model - Small Outline Packages - SO24W-1
click to zoom

STGAP1BSTR Details

  • Manufacturer Part Number:

    STGAP1BSTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    7 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    36 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

STGAP1BSTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider derating the device's operating frequency and voltage to prevent overheating.
  • Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads. Store the device in an anti-static bag or tube, and avoid touching the pins or leads during handling.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and identify the issue. Check the power supply, clock, and data signals for errors or noise. Consult the datasheet and application notes for troubleshooting guides.
  • Plan your design to minimize the need for reprogramming, and consider using a programmable device or FPGA if reprogrammability is critical. Use the device's built-in security features to protect your IP and prevent unauthorized access.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGAP1BSTR Overview

Use the download button to access the STGAP1BSTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGAP, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
