STGAP1STR - STMicroelectronics

Description: gapDRIVE™: galvanically isolated single gate driver,Programmable input deglitch filter

Download STGAP1STR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

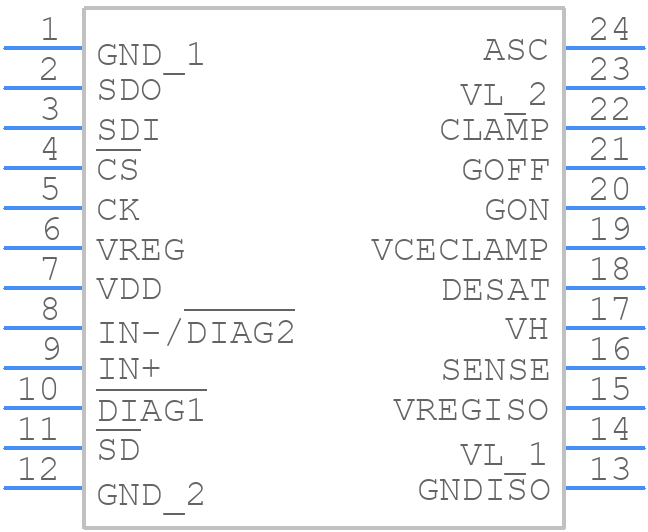

STGAP1STR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP1STR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO24W
click to zoom
3D Models
STGAP1STR - STMicroelectronics - 3D model - Small Outline Packages - SO24W
click to zoom

STGAP1STR Details

  • Manufacturer Part Number:

    STGAP1STR

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    15.4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    36 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

STGAP1STR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability of the STGAP1STR.
  • STMicroelectronics provides a configuration tool, STGAP1STR Configurator, which allows users to easily configure the device for their specific application. The tool provides a graphical interface to set parameters such as gain, filter settings, and output configuration.
  • The STGAP1STR is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability. Operating outside this range may affect the device's accuracy and lifespan.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5323, which includes steps to identify and resolve common issues with the STGAP1STR. Additionally, the device's built-in diagnostic features, such as the fault detection pin, can help identify problems.
  • The STGAP1STR is designed for low-voltage applications, and its maximum input voltage is 5.5V. Using the device in a high-voltage application may damage the device or affect its performance. If high-voltage operation is required, consider using a voltage regulator or level shifter to ensure the input voltage is within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGAP1STR Overview

Use the download button to access the STGAP1STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGAP, or try a keyword search, such as MOSFET Drivers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
