STGAP2DMTR - STMicroelectronics

Description: Galvanically isolated 4 A half-bridge dual channel gate driver

Download STGAP2DMTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

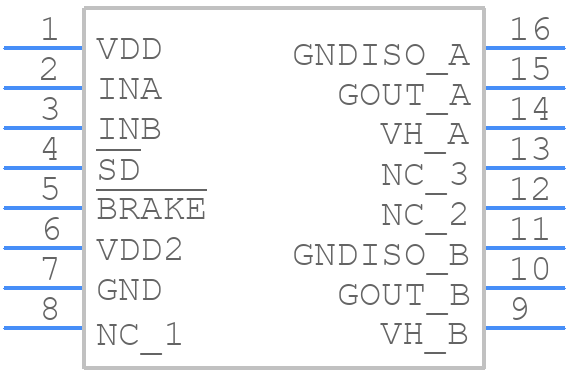

STGAP2DMTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2DMTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO16 Narrow_1
click to zoom
3D Models
STGAP2DMTR - STMicroelectronics - 3D model - Small Outline Packages - SO16 Narrow_1
click to zoom

STGAP2DMTR Details

  • Manufacturer Part Number:

    STGAP2DMTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    3.9 mm

STGAP2DMTR Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane, short traces, and minimal vias is recommended. Ensure the device is placed near the center of the PCB to minimize electromagnetic interference (EMI).
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination, pull-up resistors, and clock synchronization. Implement error detection and correction mechanisms to handle data transmission errors.
  • The device has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and avoid blocking airflow around the device. Monitor the device's temperature and adjust the system design accordingly.
  • Use shielding, filtering, and grounding techniques to minimize EMI. Ensure the device is placed in a shielded area, and use EMI filters on the power supply and signal lines. Follow EMC guidelines and regulations for your specific application.
  • Follow the recommended power-up sequence: VCC, then VDD, and finally the input signals. Ensure a slow voltage ramp-up (typically 1-10 ms) to prevent damage to the device.
