STGAP2SICSC - STMicroelectronics

Description: Gate Drivers Galvanically isolated 4 A single gate driver for SiC MOSFETs

Download STGAP2SICSC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

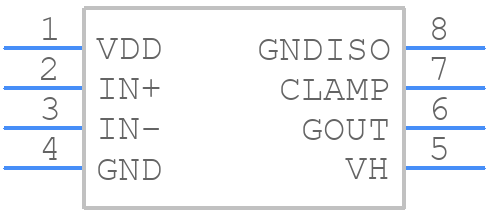

Symbol
STGAP2SICSC - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SICSC - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8W
click to zoom
3D Models
STGAP2SICSC - STMicroelectronics - 3D model - Small Outline Packages - SO-8W
click to zoom

STGAP2SICSC Details

  • Manufacturer Part Number:

    STGAP2SICSC

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.49 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    16.4 V

  • Supply Voltage1-Nom:

    18 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    5.845 mm

STGAP2SICSC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STGAP2SICSC is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • To ensure proper ESD protection, handle the STGAP2SICSC in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or leads. Also, use ESD-protected packaging and storage materials.
  • For optimal performance, follow the recommended PCB layout and design considerations outlined in the datasheet, including keeping the device's pins as short as possible, using a solid ground plane, and minimizing signal trace lengths and widths.
  • To troubleshoot issues with the STGAP2SICSC, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input signals and check for any noise or interference. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact STMicroelectronics support.
  • Yes, the STGAP2SICSC is designed for high-reliability and safety-critical applications, such as automotive, industrial, and medical devices. However, it's essential to follow the recommended design and testing guidelines, and to consult with STMicroelectronics support to ensure the device meets the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGAP2SICSC Overview

Use the download button to access the STGAP2SICSC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGAP, or try a keyword search, such as MOSFET Drivers
