STGAP2SICSCTR - STMicroelectronics

Description: Galvanically isolated 4 A single gate driver for SiC MOSFETs

Download STGAP2SICSCTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

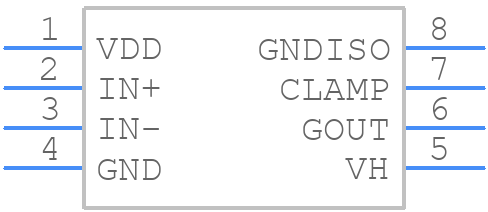

STGAP2SICSCTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SICSCTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8W
click to zoom
3D Models
STGAP2SICSCTR - STMicroelectronics - 3D model - Small Outline Packages - SO-8W
click to zoom

STGAP2SICSCTR Details

  • Manufacturer Part Number:

    STGAP2SICSCTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-10

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.49 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    16.4 V

  • Supply Voltage1-Nom:

    18 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    5.845 mm

STGAP2SICSCTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor values depend on the input voltage, output voltage, and switching frequency. A general guideline is to use capacitors with a capacitance value between 10uF to 22uF, and a voltage rating of at least 1.5 times the input voltage. However, it's recommended to consult the application note AN5323 and perform simulations to determine the optimal capacitor values for your specific application.
  • The STGAP2SICSCTR is rated for operation up to 150°C ambient temperature, but it's recommended to derate the device for reliable operation. A general guideline is to limit the ambient temperature to 125°C or lower to ensure a minimum of 10 years of operation without significant degradation.
  • To ensure EMC, follow the guidelines in the application note AN5323, which includes recommendations for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a Faraday cage to enclose the device, and ensure that the input and output cables are properly filtered and shielded.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a ramp-up rate of 3°C/s. It's essential to follow the recommended soldering profile to prevent damage to the device and ensure reliable operation.
