STGAP2SICSTR - STMicroelectronics

Description: Galvanically isolated 4 A single gate driver for SiC MOSFETs

Download STGAP2SICSTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

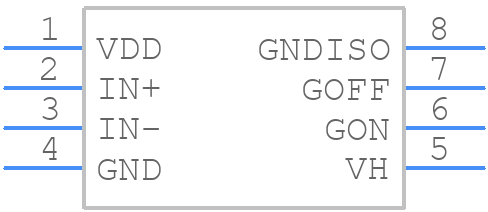

STGAP2SICSTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STGAP2SICSTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8W
click to zoom
3D Models
STGAP2SICSTR - STMicroelectronics - 3D model - Small Outline Packages - SO-8W
click to zoom

STGAP2SICSTR Details

  • Manufacturer Part Number:

    STGAP2SICSTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-10

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    7.49 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.64 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    26 V

  • Supply Voltage1-Min:

    16.4 V

  • Supply Voltage1-Nom:

    18 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    5.845 mm

STGAP2SICSTR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STGAP2SICSTR is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • To ensure proper ESD protection, handle the STGAP2SICSTR in an ESD-protected environment, use ESD-protected tools and equipment, and follow proper handling and storage procedures. It's also recommended to use an ESD wrist strap or mat when handling the device.
  • For optimal performance and reliability, it's recommended to follow STMicroelectronics' guidelines for PCB layout and design. This includes using a solid ground plane, minimizing track lengths and widths, and ensuring proper decoupling and filtering. Consult the application note AN5758 for more detailed guidelines.
  • To troubleshoot issues with the STGAP2SICSTR, follow a systematic approach to identify the root cause. Check the device's datasheet and application notes for troubleshooting guidelines, and consult STMicroelectronics' support resources, such as FAQs and technical notes. If necessary, contact STMicroelectronics' technical support for further assistance.
  • Store the STGAP2SICSTR in its original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to extreme temperatures, humidity, or physical stress. Follow the recommended storage and handling conditions outlined in the datasheet and application notes.
