STGAP4S - STMicroelectronics

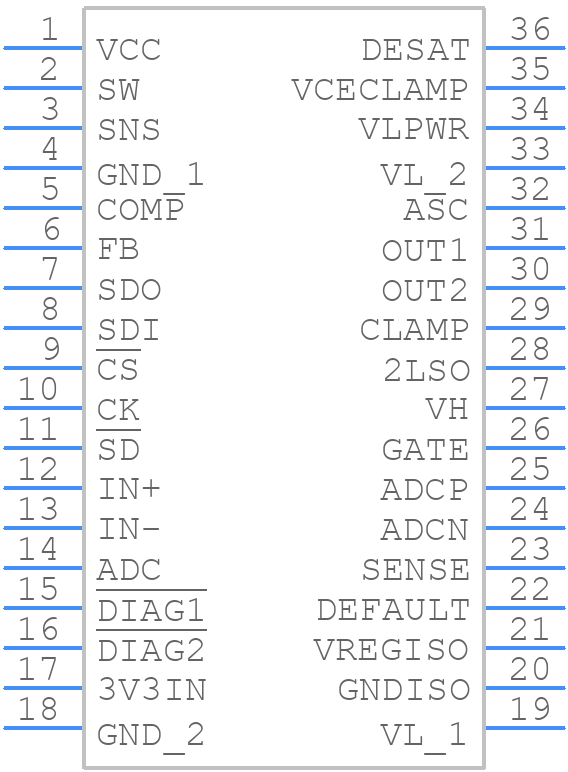

STGAP4S Details

• Manufacturer Part Number:

  STGAP4S

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

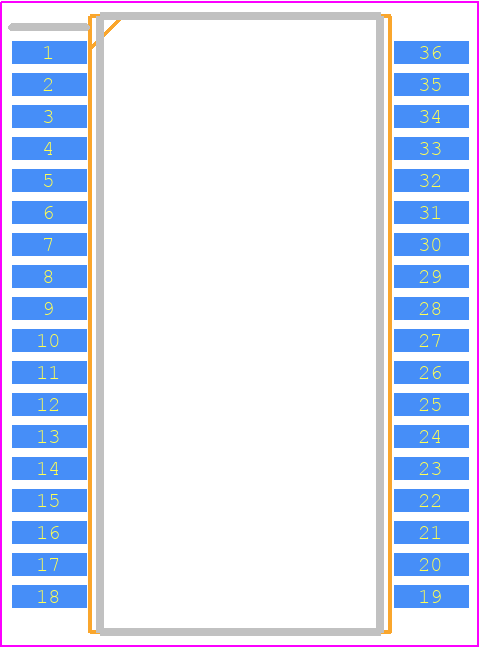

• Package Description:

  SOIC-36

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  30 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  14

• High Side Driver:

  YES

• Interface IC Type:

  HALF BRIDGE BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G36

• Length:

  15.4 mm

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  2.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP36,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  32 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Turn-off Time:

  0.1 µs

• Turn-on Time:

  0.1 µs

• Width:

  7.5 mm
