STGB30V60DF footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

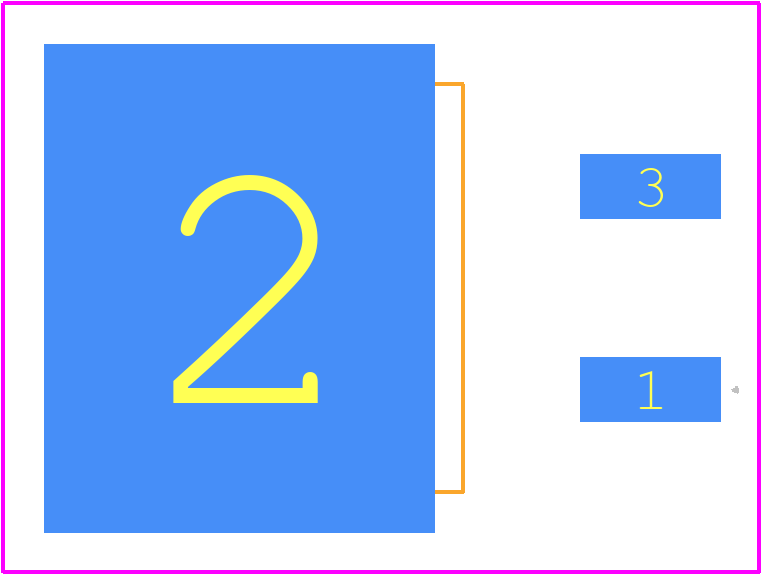

STGB30V60DF - STMicroelectronics PCB footprint - Other - Other - D²PAK_2022-25

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for STGB30V60DF
Part Number STGB30V60DF
Manufacturer STMicroelectronics
Pin Count 3
Part Category Transistor IGBT
Package Category Other
Footprint Name Other - D²PAK_2022-25
Released Date Oct 4, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

STGB30V60DF Details

Manufacturer Part Number:
STGB30V60DF
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Factory Lead Time:
15 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
5.4
Case Connection:
COLLECTOR
Collector Current-Max (IC):
60 A
Collector-Emitter Voltage-Max:
600 V
Configuration:
SINGLE WITH BUILT-IN DIODE
Gate-Emitter Voltage-Max:
20 V
JEDEC-95 Code:
TO-263AB
JESD-30 Code:
R-PSSO-G2
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Polarity/Channel Type:
N-CHANNEL
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
SINGLE
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
225 ns
Turn-on Time-Nom (ton):
59 ns

STGB30V60DF Frequently Asked Questions (FAQs)

The maximum junction temperature that the STGB30V60DF can withstand is 175°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, such as using a heat sink, and ensuring good airflow around the device.
The recommended gate resistor value for the STGB30V60DF is typically between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
Yes, the STGB30V60DF is suitable for high-frequency switching applications up to 100 kHz, but it's essential to follow the recommended layout and PCB design guidelines to minimize parasitic inductance and capacitance.
To protect the STGB30V60DF from overvoltage and overcurrent, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode, and to implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

STGB30V60DF Overview

Use the download button to access the STGB30V60DF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like STGB3, or try a keyword search, such as IGBTs
