STGB7NC60HDT4 - STMicroelectronics

Description: 600 V, 14 A very fast IGBT

Download STGB7NC60HDT4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STGB7NC60HDT4 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

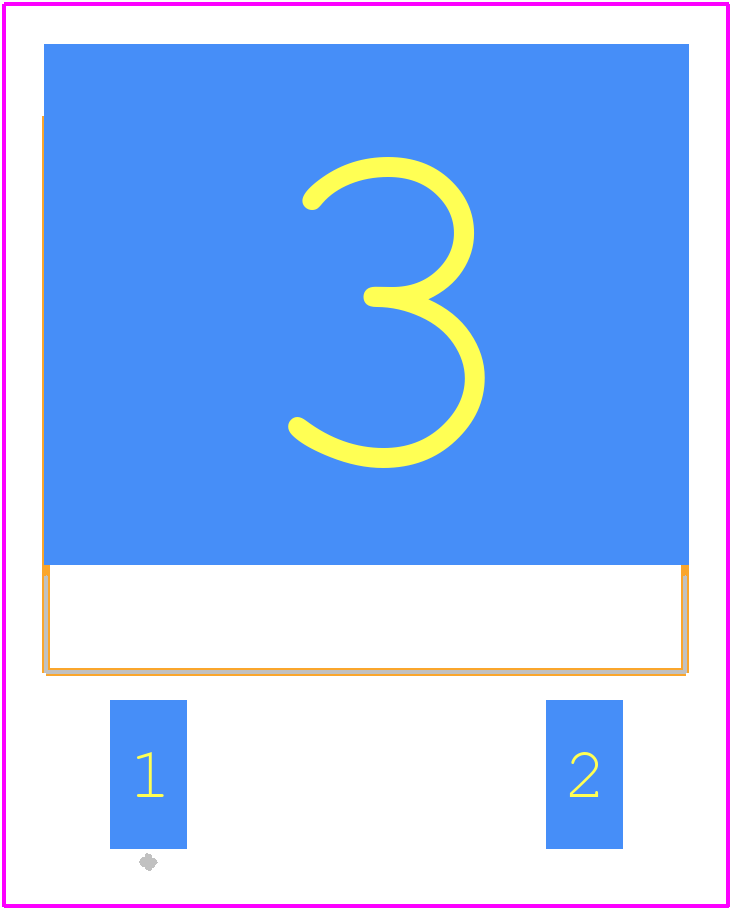

STGB7NC60HDT4 - STMicroelectronics PCB footprint - Other - Other - D2PAK
click to zoom
3D Models
STGB7NC60HDT4 - STMicroelectronics - 3D model - Other - D2PAK
click to zoom

STGB7NC60HDT4 Details

  • Manufacturer Part Number:

    STGB7NC60HDT4

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK

  • Pin Count:

    4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.4

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    600 V

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Gate-Emitter Thr Voltage-Max:

    5.75 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    80 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    221 ns

  • Turn-on Time-Nom (ton):

    25.5 ns

STGB7NC60HDT4 Frequently Asked Questions (FAQs)

  • The maximum junction temperature that the STGB7NC60HDT4 can withstand is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, ensure good thermal contact between the device and the heat sink, and provide adequate airflow around the device.
  • The recommended gate resistor value for the STGB7NC60HDT4 is between 10Ω and 100Ω, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI), but may increase switching losses.
  • Yes, the STGB7NC60HDT4 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specified parameters.
  • To protect the STGB7NC60HDT4 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the device is stored in an anti-static bag or tube, and use an ESD-protected workstation during assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STGB7NC60HDT4 Overview

Use the download button to access the STGB7NC60HDT4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STGB7, or try a keyword search, such as IGBTs
